| Model | MN-H4005 |
|---|---|
| Overall machine size（L×W×H） | 190mm×212mm×180mm |
| Heating area（L*W*H） | 150 mm×150 mm×40mm |
| Heating pipe Name | Infrared radiation tube |
| Heating pipe Number | 2~8 |
| Heating pipe power | 300W*6 |
| Specification of power supply | Single phase 220V+PE |
| Overall machine power | 1900W |
| Safety grade | PE |
| Overall machine weight | <4KG |
Heating System + Control System
Two heating control modes

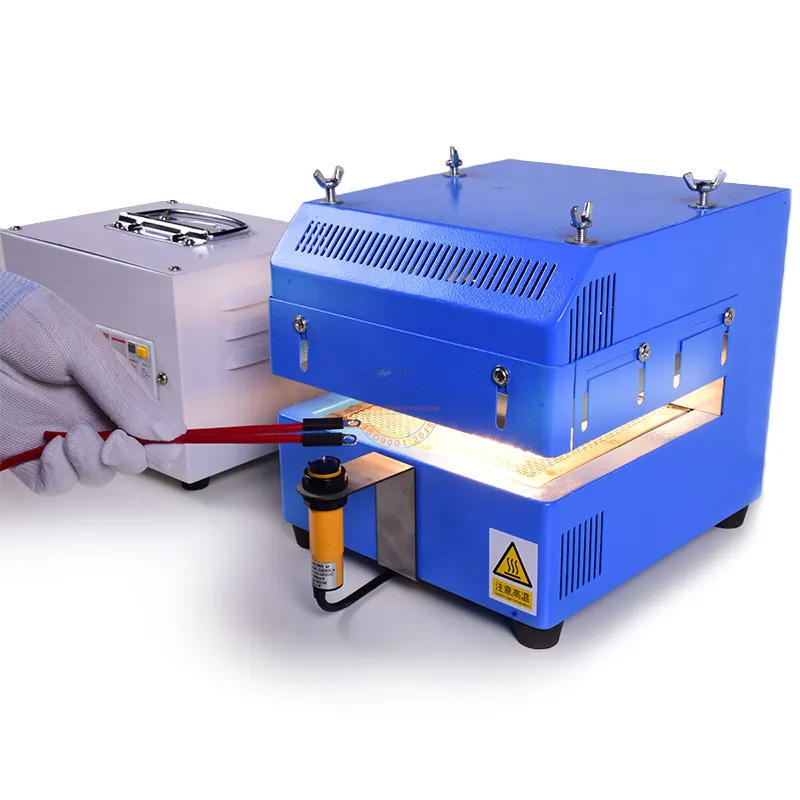

1. Proximity of products, induction trigger, heating.
2.Circulating automatic start-stop heating mode.

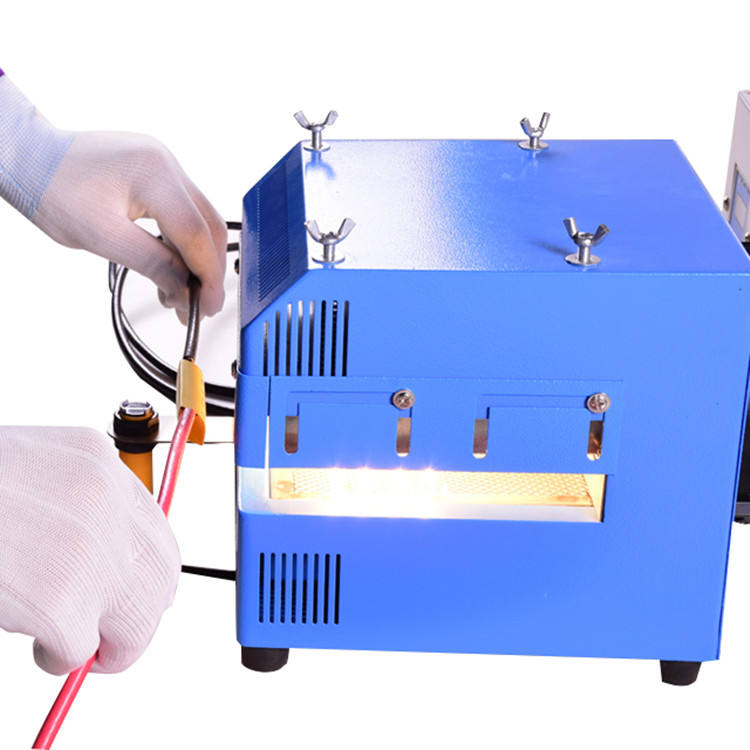

The machine is heated on both sides with uniform heating.
Adjustable width of heating zone

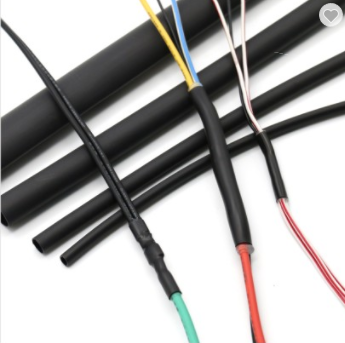

The width of the heating zone can be adjusted by the user according to the size of the heat shrinkable tube, which can save energy
anddo nohurt the line.
Design of Heat Insulation in Heating Zone
The double design of heating zone shell is filled with insulation material, which can isolate the internal and external
temperature, save energy and protect the working environment.
