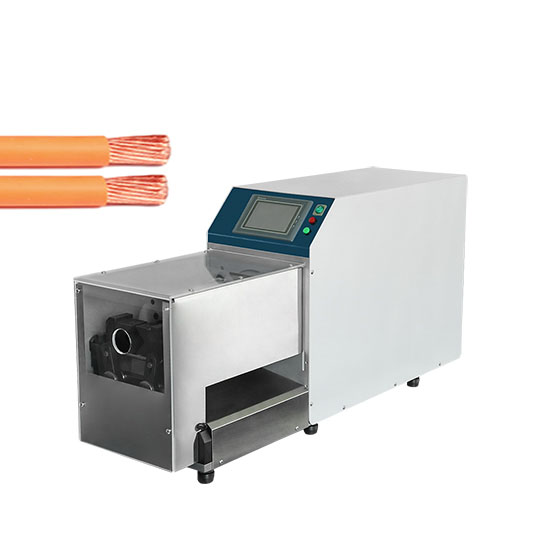

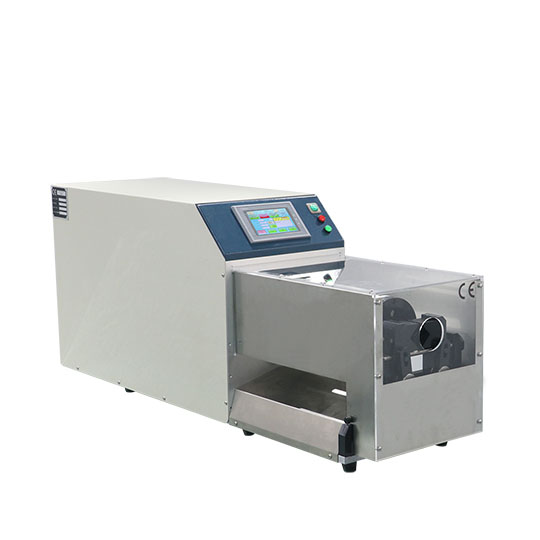

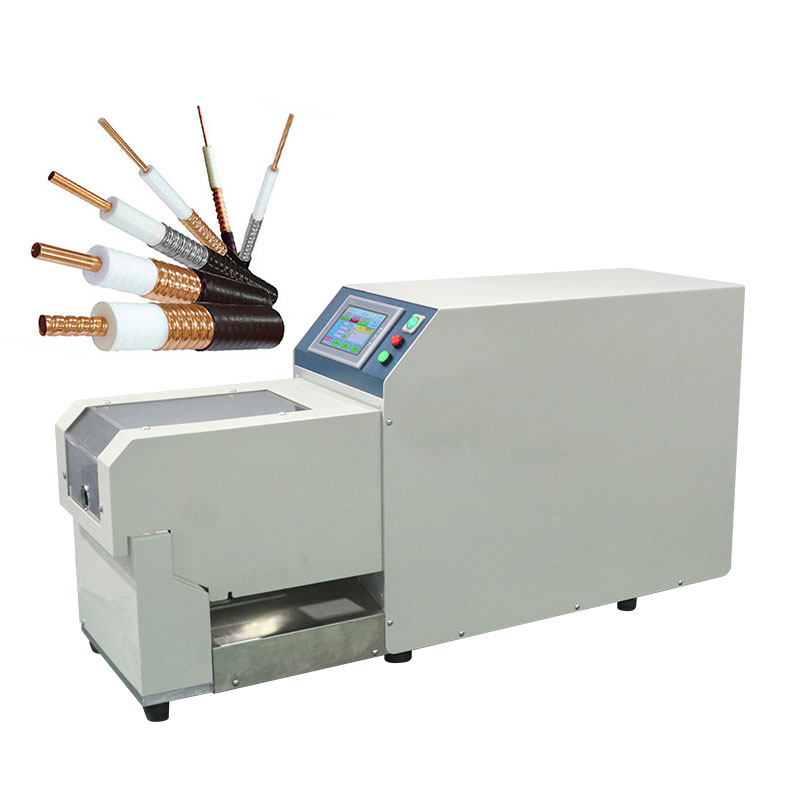

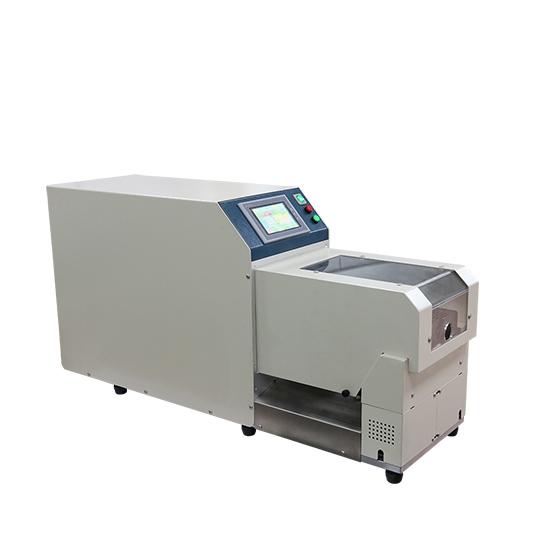

Coaxial Cable Stripping Machine (OD 5-34 mm)
Model:MN-X3520
ENQUIRE NOW!
Model:MN-X3520
Max. stripping length:200mm
Wire diameter: 6-33 mm
Max. stripping layer:9 layers
Specifications
Video
Download
Metric
Imperial
Max. stripping length 200 mm
Diameter increments 0.01 mm
Wire diameter 6-33 mm
Max. stripping layer 9 layers
Productivity 200-500pcs/h
Power 800W
Weight 145 kg
Start Pedal

1.HMI(human machine interface) control, easy to understand operation, can peel up to 9 layers, can store up to 99 groups of processing data.

2.Rotation blade head, four piece rotation blade design and exquisite structure improve the stability of wire stripping and the working life of the tool.

3.Adopt servo motor, precision ball screw and multi-point motion control system, stable and efficient performance.

4.The cutting tool adopts imported tungsten steel and titanium alloy coating, sharp and durable.

5.It can meet the special requirements of multi-layer peeling, multi-section peeling, automatic continuous starting, etc.
