0.25-10mm2 Electric Terminal Crimping Machine for Loose Terminals Cable Lugs Crimper Wire Press Machine

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

Electric Terminal Striping & Crimping Machine
Model:MN-6B2

Model: MN-6B2
Crimping force:12.7KN
Stripping Function:No
Max Stripping wire size:Non-insulation terminal ≤10mm2 Insulation ≤6mm2 Tubular terminal≤35mm2

Specifications

Feature

Download

Metric

Imperial

Model MN-6B2BC

Crimping force 12.7KN

Stripping Function No

Max Stripping wire size Non-insulation terminal ≤10mm2 Insulation ≤6mm2 Tubular terminal≤35mm2

Crimping Speed 1.5S(60HZ) _1.8S(50HZ)

Power supply AC200-230V _AC 100-125V

Power Rating 90W

Machine dimension 33*27*15cm

Weight 18 kg

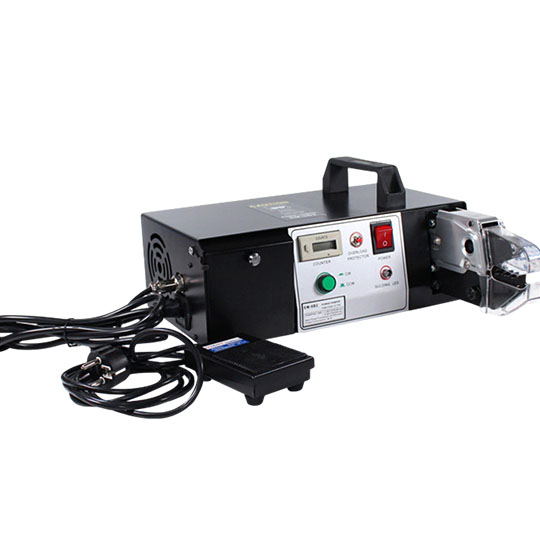

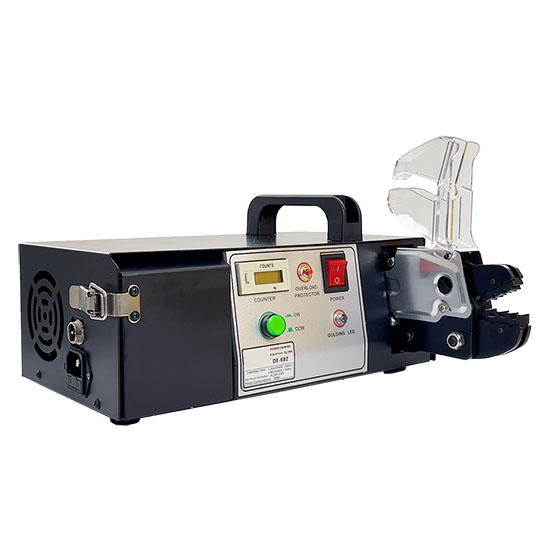

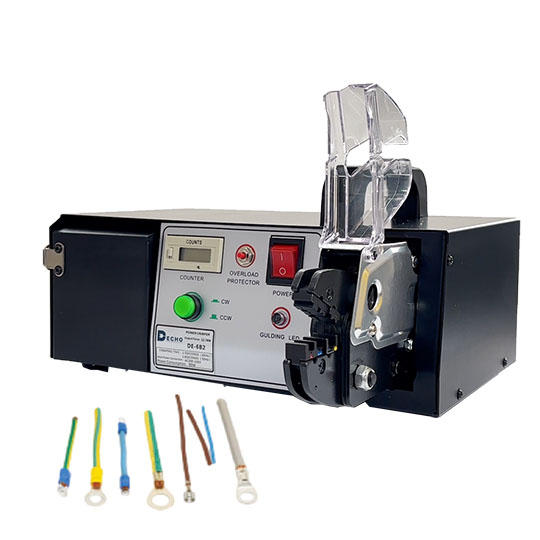

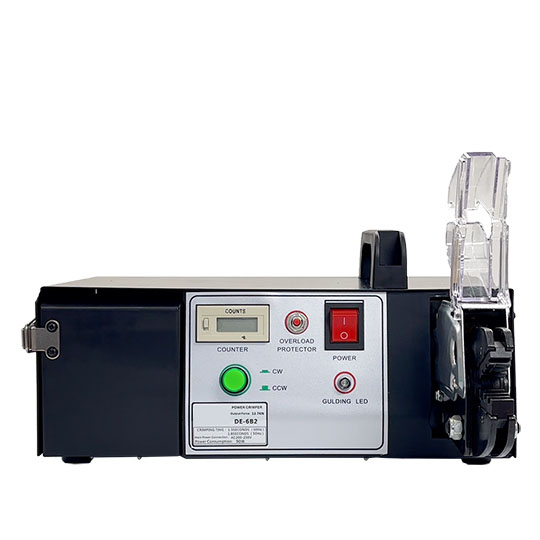

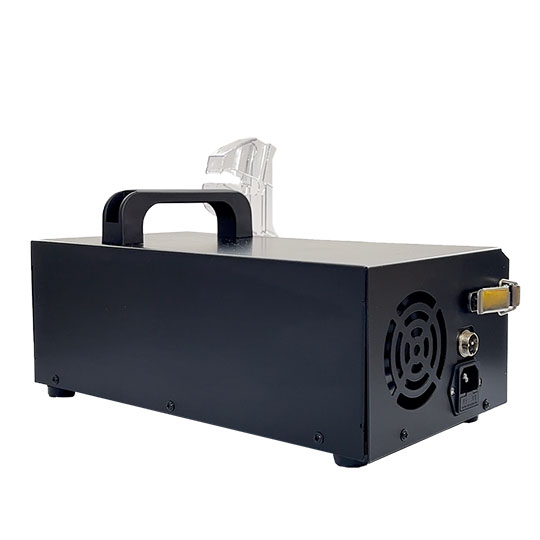

This electric wire terminal crimping machine is fit for crimping many kinds of terminals in large or medium quantity. Applicable

wire range: 0.25-10 sqmm.

1. The crimper is driven by fixed speed motor so that it owns advantages of high efficiency and high quality not only in crimping

force but crimping speed. It is good for terminal crimping in large or medium quantity.

2. The machine is driven by dual-action normal cylinder, which is fit for crimping many kinds of terminals.

3. The die sets are interchangeable with our manual crimping tools. So we can provide you all kinds of die sets for crimping.

4. The crimping dies are interchangeable for crimping different terminals.
