Industrial control cabinet cable processing equipment, fully automatic wire cutting, stripping, multi-core wire sheathing, stripping and cutting machine

Cut & Strip

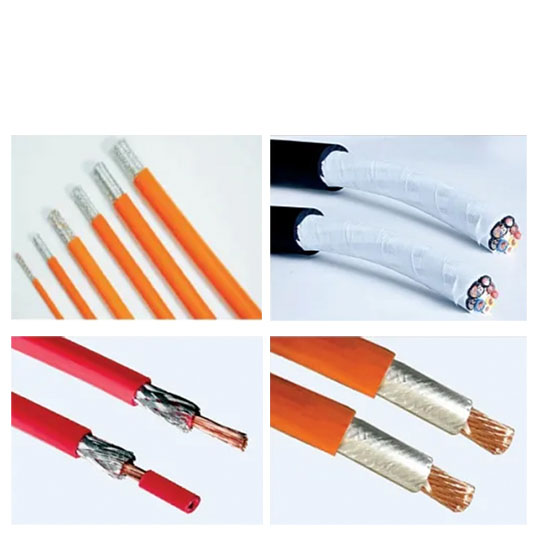

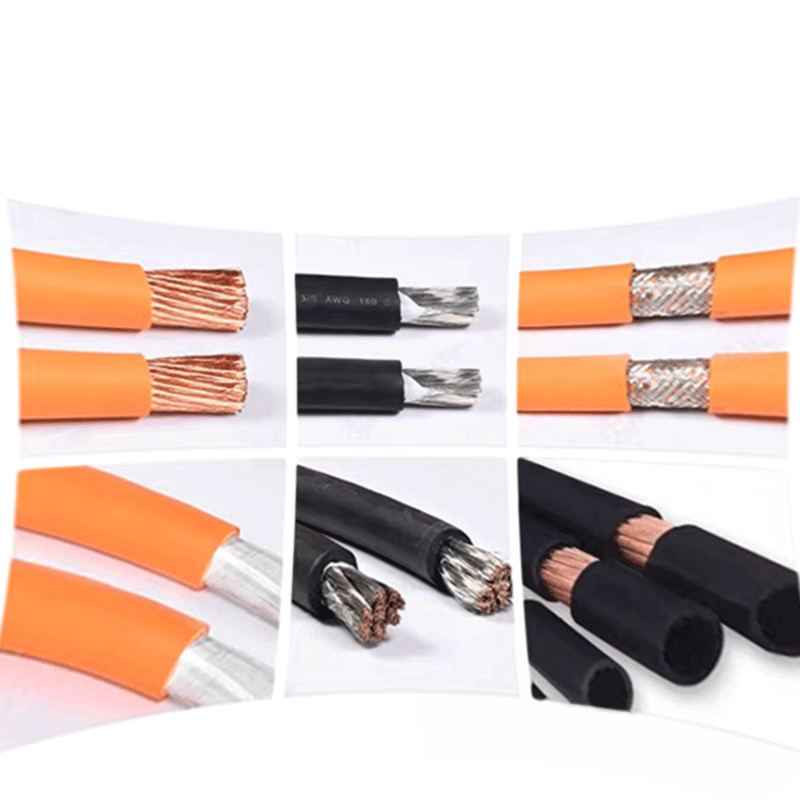

Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

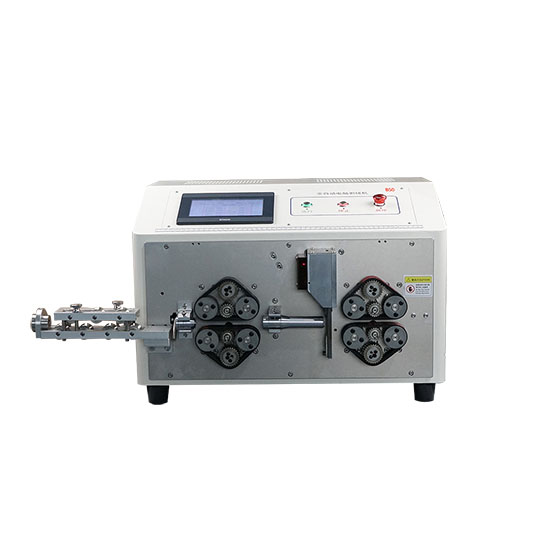

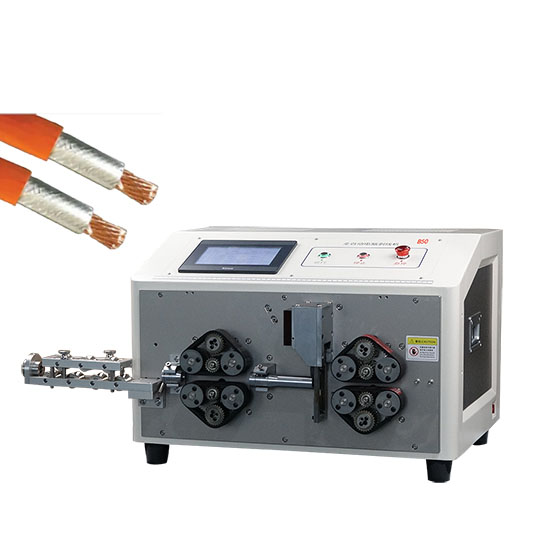

Wire Cutting & Stripping Machine (OD 2-50mm)
Model:MN-S365

ENQUIRE NOW!

Model number: MN-S365
Wire Outer Diameter: 10-20mm
Wire Size:2-50mm²
Diameter of conduit: 10-12-14-16-18-20
Stripping length: 0.1-100mm 0.1-70mm

Specifications

Feature

Download

Usage	Multifunctional
Model number	MN-S365
Power	2.2kw
Weight (KG)	90
Place of origin	Ruian,China
Brand name	none
Dimension(LWH)	650570455mm
Wire cutting diameter	10-20mm
Operating weight	90kg
diameter of conduit	10-12-14-16-18-20
External dimensions	L650mmW570mmH455mm
Detection function	missing line detection
Input power	AC220V/50Hz duct swing pneumatic
Machine power	2.2KW
Tangent length	0.01-9999999.99mm
Rated power	0.8KW
Stripping length	0.1-100mm 0.1-70mm

Quick belt replacement: The belt features a snap-on mounting mechanism, eliminating the need to disassemble the feeder assembly. A single operator can complete belt replacement in 5-8 minutes, significantly faster than the 20-30 minutes required for traditional wire strippers. The belt is oil- and wear-resistant, boasting a lifespan of 6,000-10,000 hours under normal use—1.5-2 times that of traditional metal feeders—reducing the frequency of replacement of wearing parts.

No risk of oil contamination: The belt drive eliminates the need for frequent lubrication, preventing lubricant from penetrating the wire insulation or core (especially suitable for clean wire processing in the electronics industry). This reduces internal oil cleaning and saves approximately 20% of maintenance hours annually.
