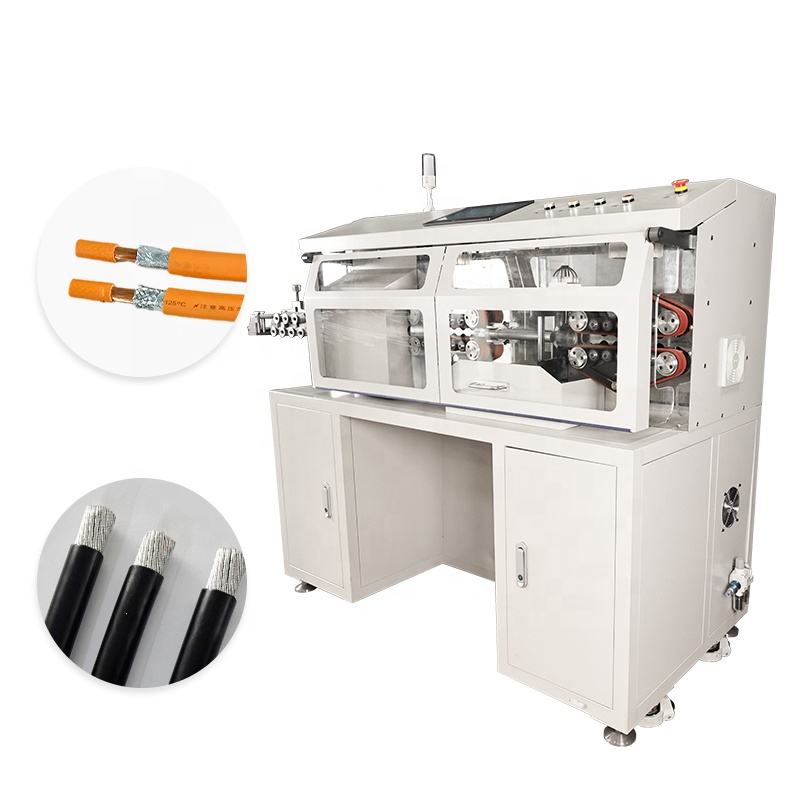

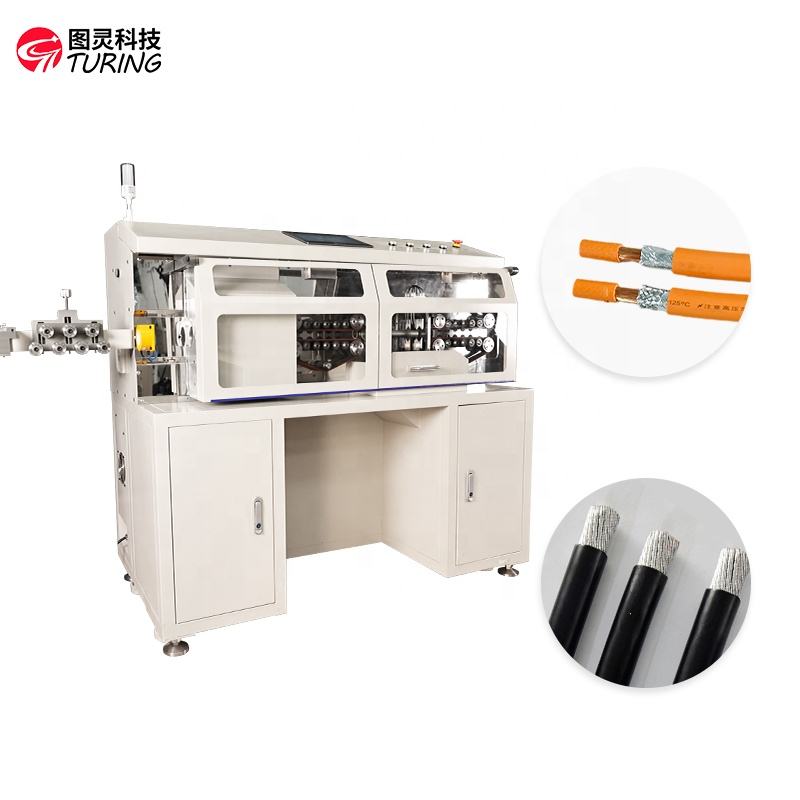

Fully automatic rotary wire stripping machine （5–25mm） (2.5 mm²

Cut & Strip

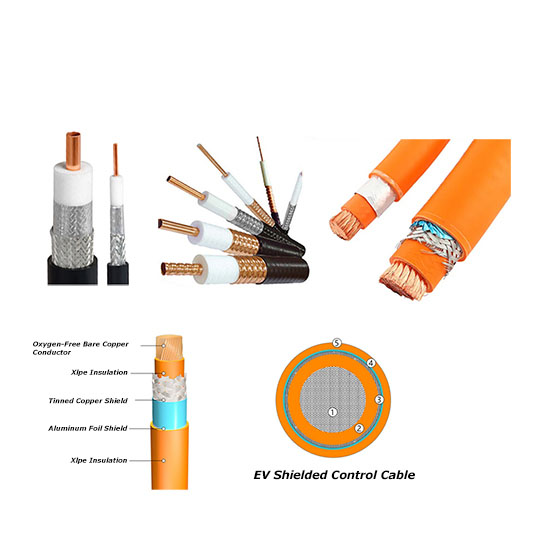

Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

Fully automatic rotary wire stripping machine （5–25mm） (2.5 mm²–120 mm²)
Model:MN-X640

ENQUIRE NOW!

Wire diameter range:5–25mm (2.5 mm²–120 mm²)
Stripping length: head max200mm，tail max250mm
Maximum number of stripping layers: 9 layers
Wire cutting capacity:150mm–99,999mm

Specifications

Video

Download

Wire cutting capacity	150mm–99,999mm
Wire diameter range	5–25mm (2.5 mm²–120 mm²)
Stripping length setting unit	0.01mm
Cutting depth setting unit	0.01mm
Maximum number of stripping layers	9 layers
Operating voltage	AC220V/50Hz
Power	3500W
Dimensions	1430×750×1300mm
Weight	375kg
Production efficiency	350–750 pieces per hour (depending on the wire material)

Feature

● This machine is a powerful automatic wire cutting and stripping machine, specially upgraded for processing large square coaxial and new energy cables

● It handles cable outer diameters from 5mm to 25mm with high precision, supporting up to 9 layers of stripping.

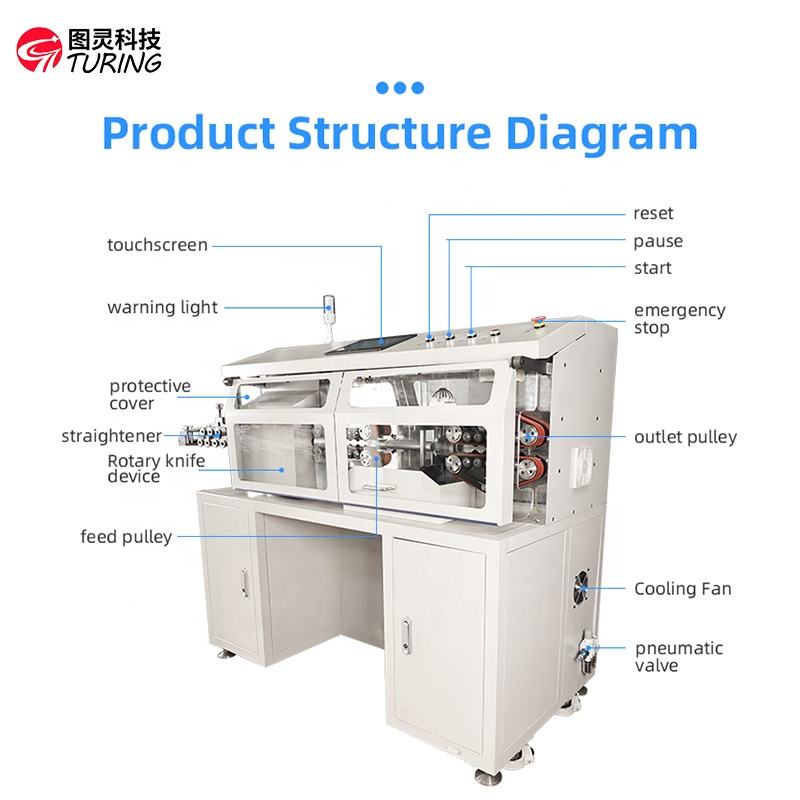

● Its unique rotary blade head combined with a V-blade peeling system ensures clean, smooth, and accurate stripping results. Ideal for high-efficiency, high-precision cable processing in telecom, power, and EV industries.
