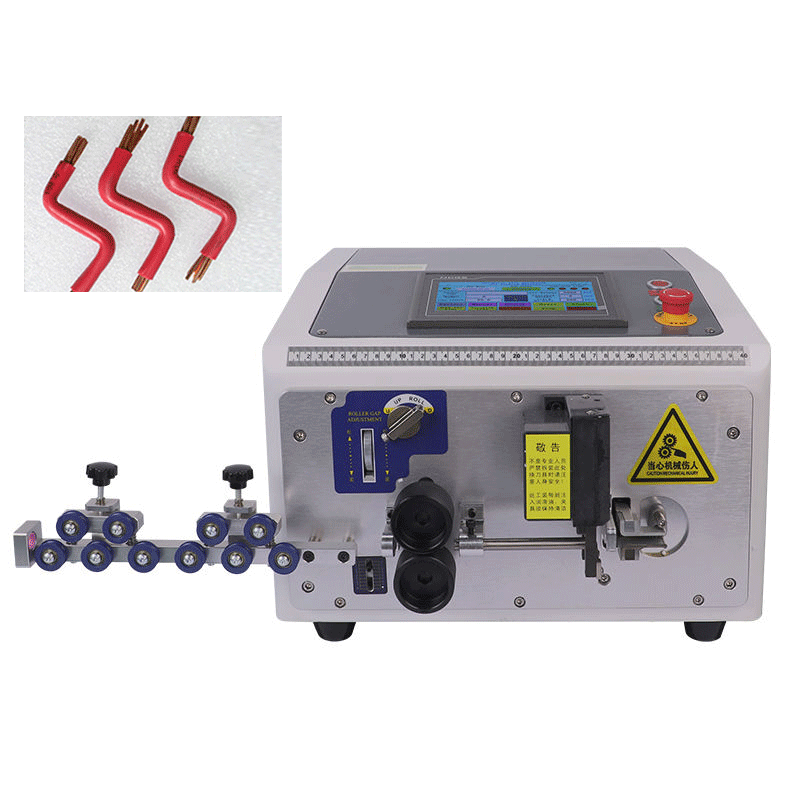

Automatic 6mm² Wire Cutting Stripping Bending Machine 3-in-1 Electric Cable Processor

Cut & Strip

Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

Wire Cutting & Stripping & Bending Machine (1-6mm2)
Model:MN-B405

ENQUIRE NOW!

Model:MN-B405
Wire range:1-6mm2
Stripping length:±(0.2*L)mm
Productivity:800-1500pcs/hour
Noise level:<70dBA
Electrical connection:AC 220/110V 50/60HZ 350W
Program save:200
Bending shape:0-150 degrees

Specifications

Feature

Download

Model	MN-B405
Wire range	1-6mm2
Stripping length	0.1-50mm
Length accuracy	±(0.2*L)mm
Productivity	800-1500pcs/hour
Noise level	<70dBA
Electrical connection	AC 220/110V 50/60HZ 350W
Program save	200
Bending shape	0-150 degrees
Machinedimension	430380300mm
Weight	35kg
Number of bending sections	10

● This is a high performance wire cutting stripping and bending machine for processing 1-16mm2 wires and cables;

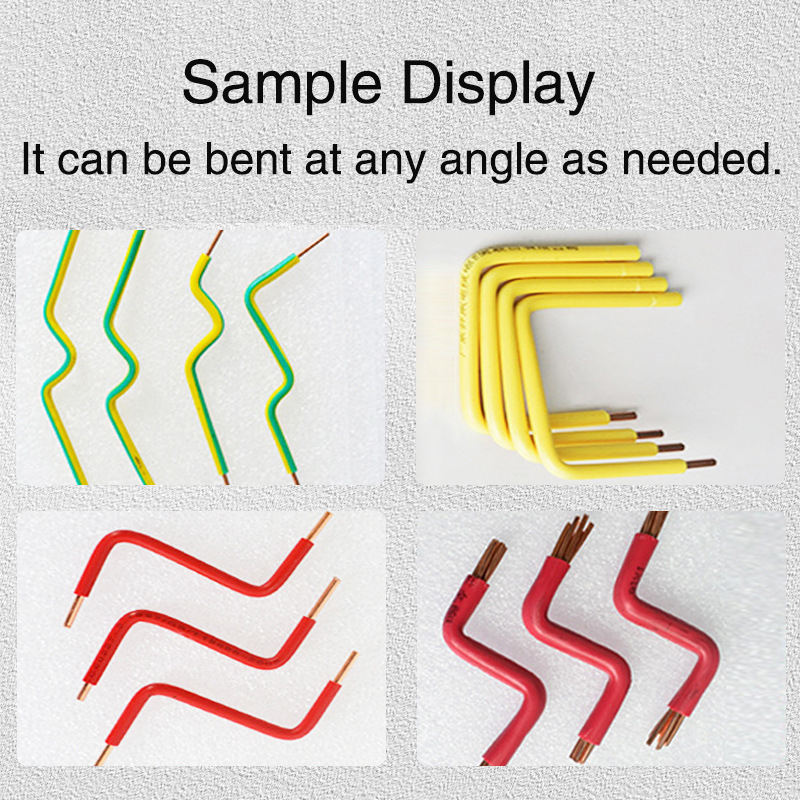

● It can not only strip both ends of the wire, but also bend the wire into your requested angle;

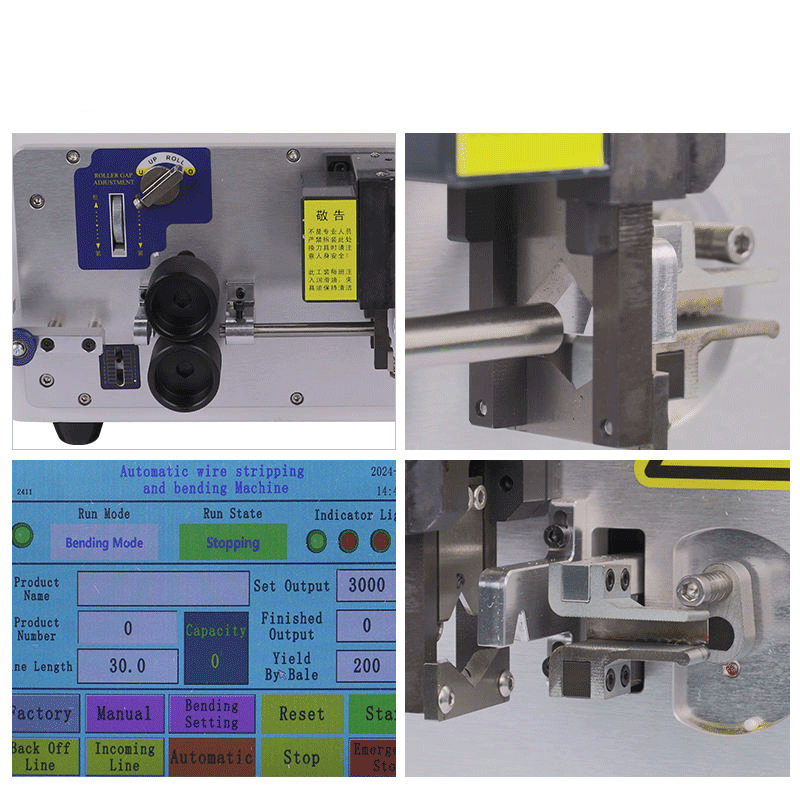

● The straightforward display provides information in the selected language about the current processing status, very visualized;
● The machine is mainly suitable for wire harness processing of electronics, electrical appliances, toys, automobile fittings and other industries;
● Affordable price and perfect working performance.
