Cut & Strip

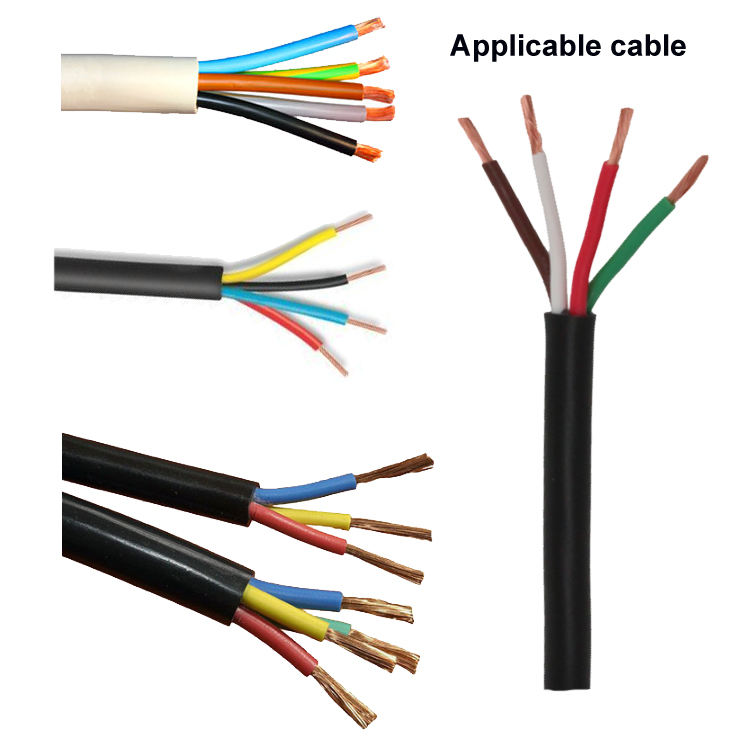

Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.
Home Porducts Cut & Strip
Products
Our products have passed 3C certification, with reliable quality and durability.
< >

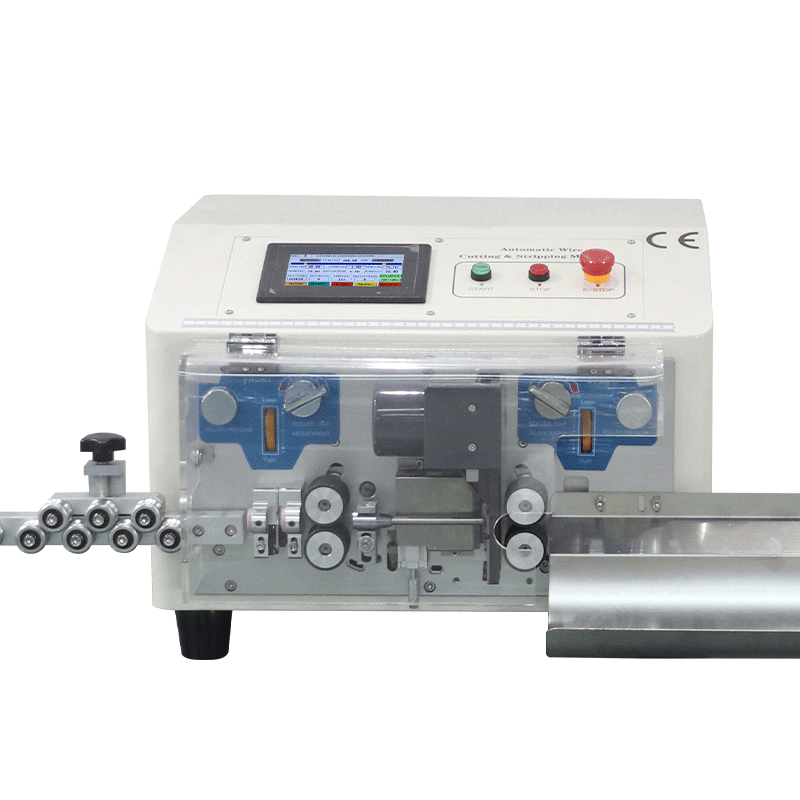

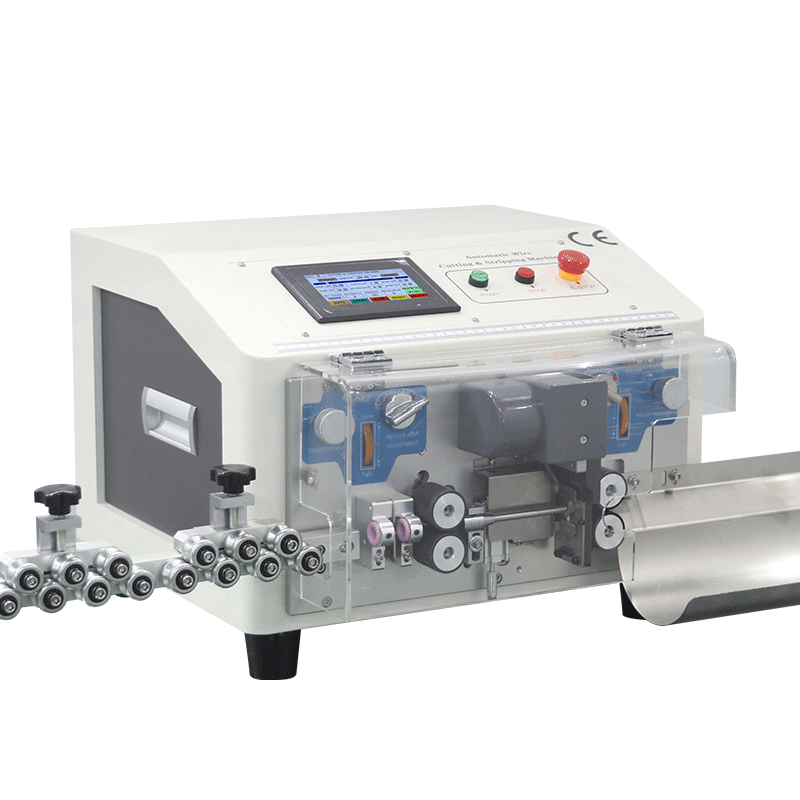

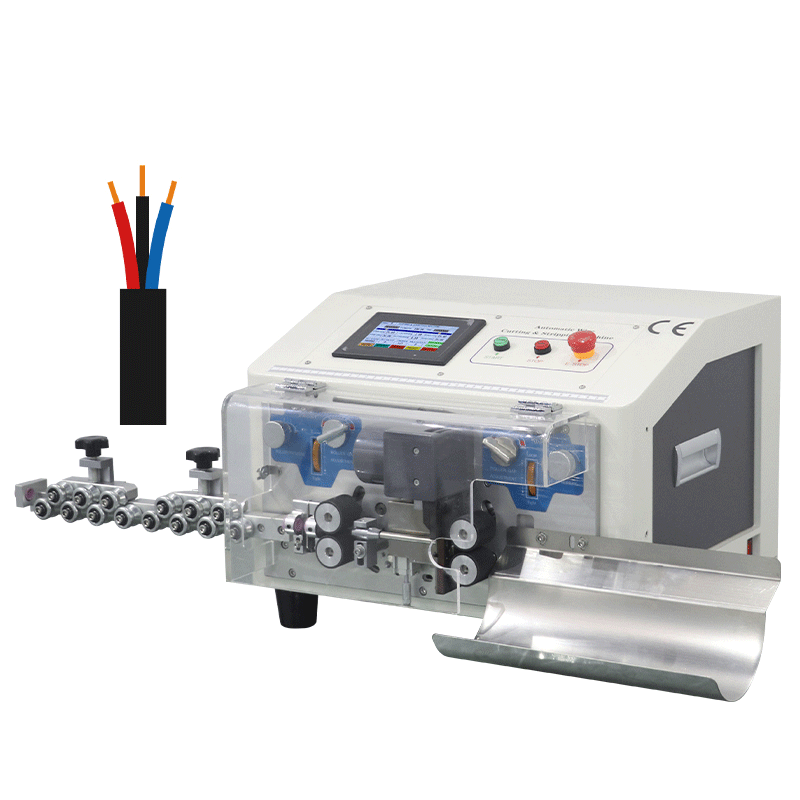

Multi-conductor Cable Cutting & Stripping Machine (1-6mm)
Model:MN-S390
ENQUIRE NOW!
Model:MN-S390
Function:Cut & Strip 1-5 cores cable
Display mode:English /Chinese interface LCD display
Stripping length:0~80mm
Inner stripping length:1-10mm
Wire Range: 1-6mm outer diameter
Specifications
Feature
Download
ModelMN-S390
FunctionCut & Strip 1-5 cores cable
Display modeEnglish /Chinese interface LCD display
Stripping length0~80mm
Inner stripping length1-10mm
Cutting Length0.1mm--99999mm
Cutting toleranceWithin 0.002 x Lmm L=cutting length
Tool materialsimport quick-cutting steel
Type of drivefour-wheel drive(Optional belt drive)
Power supplyAC220V/110V
Weight48KG
Dimensions450*450*360mm


1. Computer-Controlled with Touch Screen Operation: The machine supports computer control for advanced customization and is equipped with a user-friendly touch screen for easy operation.

2. High-Speed Wire Peeling: Capable of freely setting the wire length, cord top, wire tail, and peeling length within the operational range, allowing for high-speed and efficient stripping.

3. Measuring and Stable Performance: The machine includes a measuring function that ensures stable performance and convenient operation, contributing to the overall reliability of the stripping process.

4. Fully Automatic Operation: Minimizes manual intervention, thereby enhancing production efficiency and reducing the potential for human error.

5. Customizable Computer Control: Users can input and adjust stripping parameters through a computer interface, accommodating various stripping requirements for different wire types and specifications.

6. Precision Stripping: Employs sophisticated control algorithms to deliver precision stripping, ensuring the integrity of the conductor and avoiding any damage to the wire core.

7. Core-Safe Technology: Designed to protect the wire core during the stripping process by carefully removing the outer insulation without causing harm to the internal wires.

8. High-Precision Cutting System: The machine is equipped with a high-precision cutting system that guarantees clean and uniform cut ends, essential for high-quality wire processing.

9. Multi-Function Applicability: Versatile and suitable for a range of wire materials and stripping needs, including insulated, waterproof, and flame-retardant cables, making it an indispensable tool for diverse wire processing tasks.
