MN-F7010
Model:MN-F7010

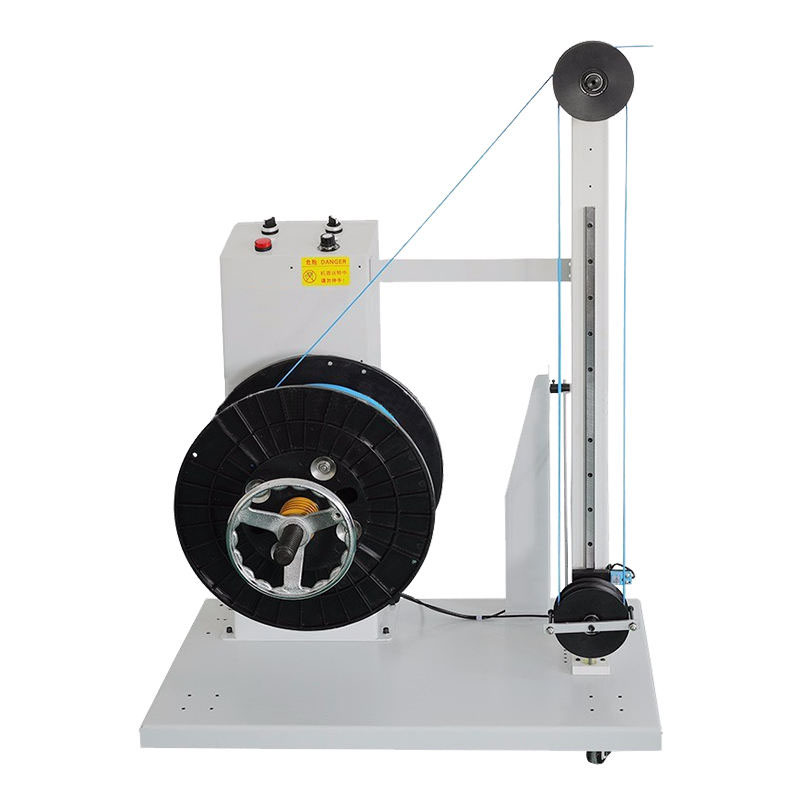

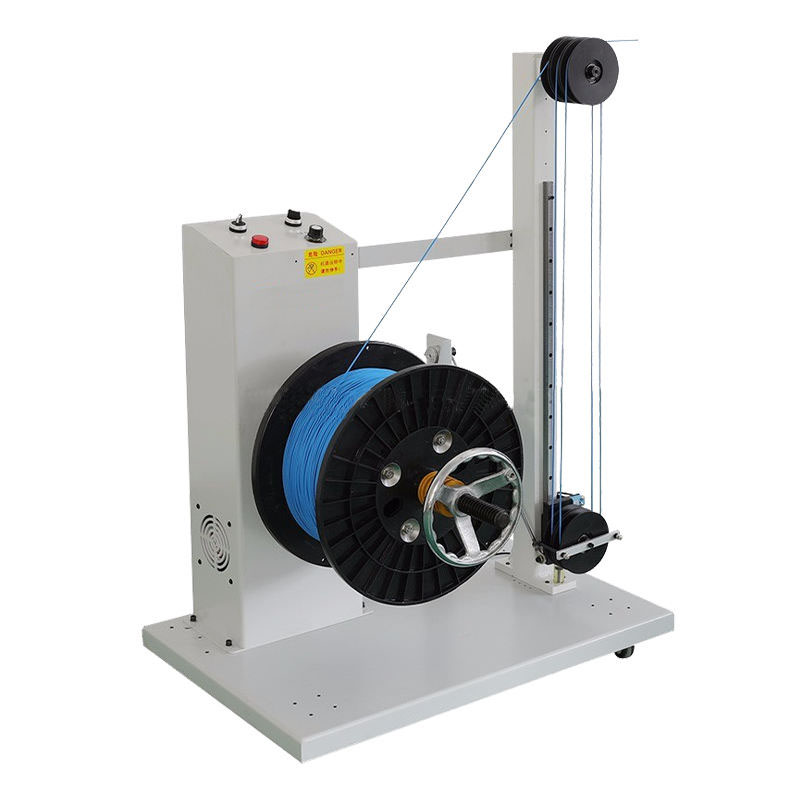

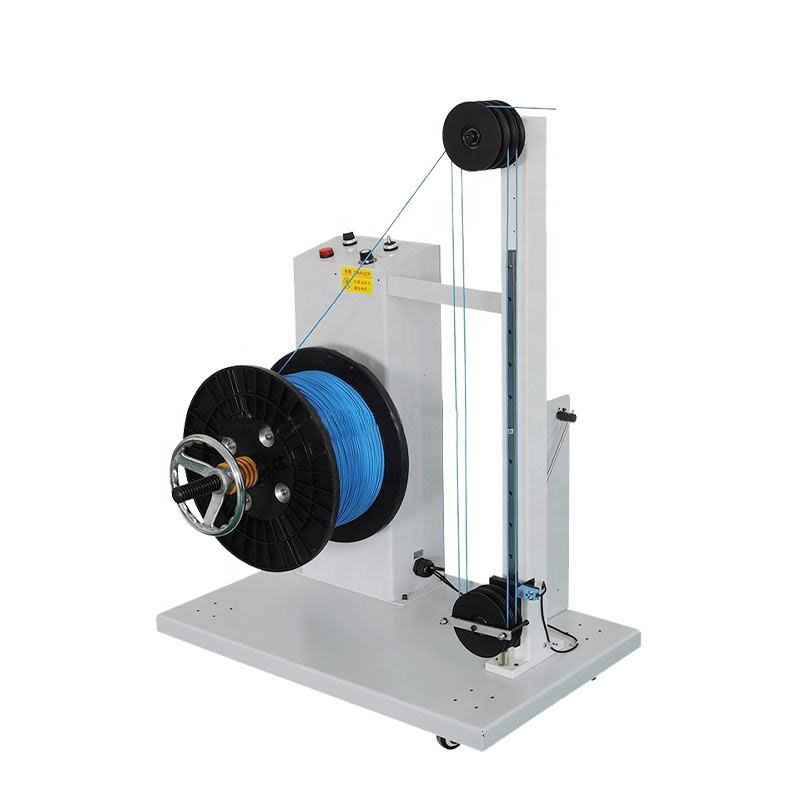

Automatic Wire Feeding Machine ,the speed is changed according to cutting machine speed that not need people adjust ,automatic induction pay off, guarantee wire/cable can automatically send out. Avoid tying a knot to, it is suitable to match with our wire cutting and stripping machine to use.

Specifications

Feature

Download

Model	MN-F7010
Wire Size	< 10.0mm
Cable Drum OD	Max. 500mm
Cable Drum Width	<300mm ( customised)
Max. Loading Weight	50kgs
Accumulated Wire Length	Around 3.2m
Power Supply	AC110/220V/50/60HZ
Machine Measurement	600500950mm

Product Description
Automatic Wire Feeding Machine ,the speed is changed according to cutting machine speed that not need people adjust ,automatic induction pay off, guarantee wire/cable can automatically send out. Avoid tying a knot to, it is suitable to match with our wire cutting and stripping machine to use.

Feature
1.The frequency converter controls the pre-feeding speed.Not need people operate speed , It is suitable for various wires and cables. 2.can cooperate with any kind of automatic machine to feed the wire. Can Automatically cooperate with wire stripping machine speed

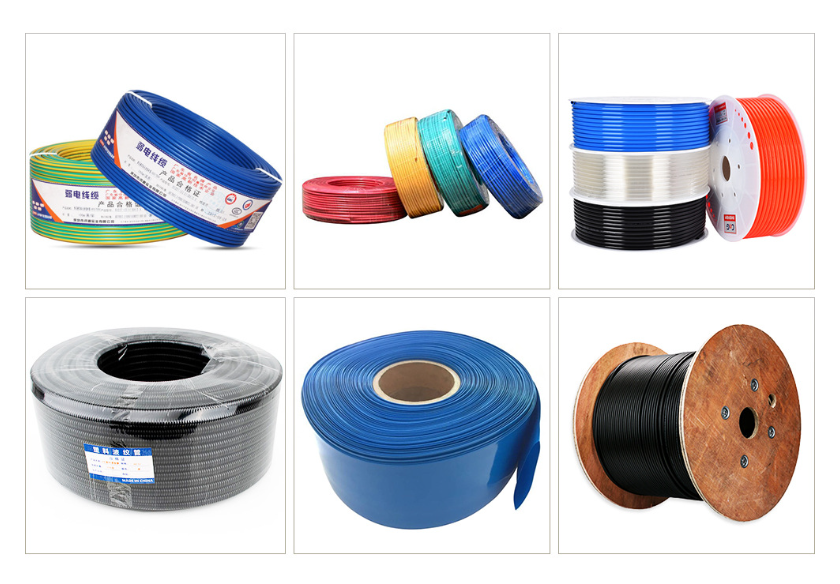

2.3.Applicable to various types of electronic wires, cables, sheathed wires, steel wires, etc.
3. 4. Cable spool max diameter: 500mm ,Max Load weight: 50KG
