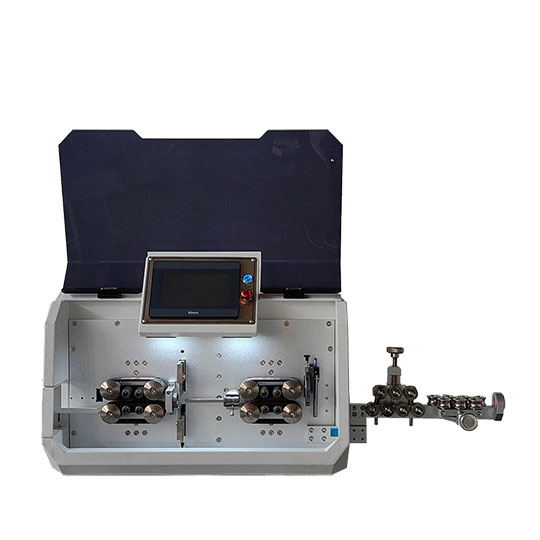

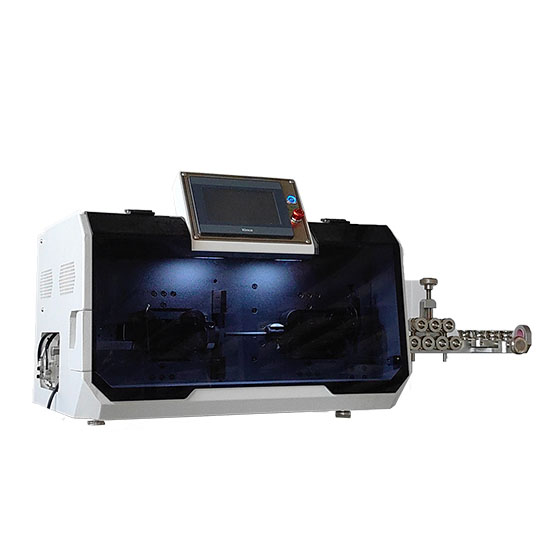

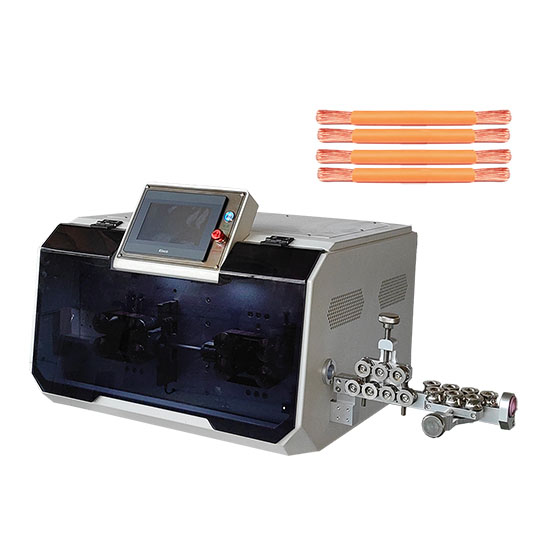

MN-S110

Cut & Strip

Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

MN-S110
Model:MN-S110

Model MN-S110+ MN-S110+-2
Conductor cross-section	0.75-30 mm²

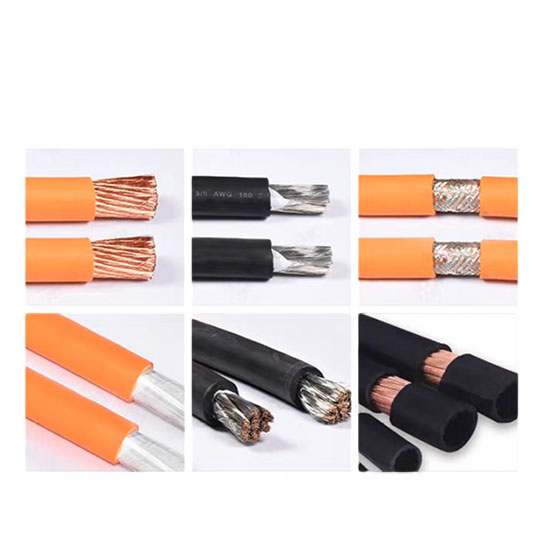

Cable	Single core cable,Multi-conductor cable,Sheat cable etc.
Core wire stripping	2-10 cores	N/A
Cutting length	1-999,999.9 mm
Cutting length tolerance	<0.002*L(L=cutting length)
Stripping length (side l)	Cable jacket -Full strip:10-200 mm -Half strip:1-800 mm Core wire -Fullstrip:1-50 mm -Half strip:5-200 mm	Fullstrip:10-200 mm Half strip:1-800 mm
Stripping length (side II)	Cable jacket -Full strip:10-80 mm -Half strip:1-300 mm Core wire -Fullstrip:1-50 mm -Half strip:5-80 mm	Full strip:10-80 mm Half strip:1-300 mm
Maximum guide tube diameter	18mm
Productivity	2000 pes./h 900 pcs./h(multi-conductor cable)	2000 pcs./h
Blade material	Imported high speed steel
Display mode	7-inch touch screen
Driving mode	Servo motor cutting with 16 roller drivng system
Feeding mode	Belts feeding with pressure stripping function.
Roller Gap	Digital program control
Power supply	110,220V(50-60 Hz)
Power	1.1 kW
Compressed air connection	0.5-0.7 MPa
Weight	95kg
Dimension	680605520 mm
