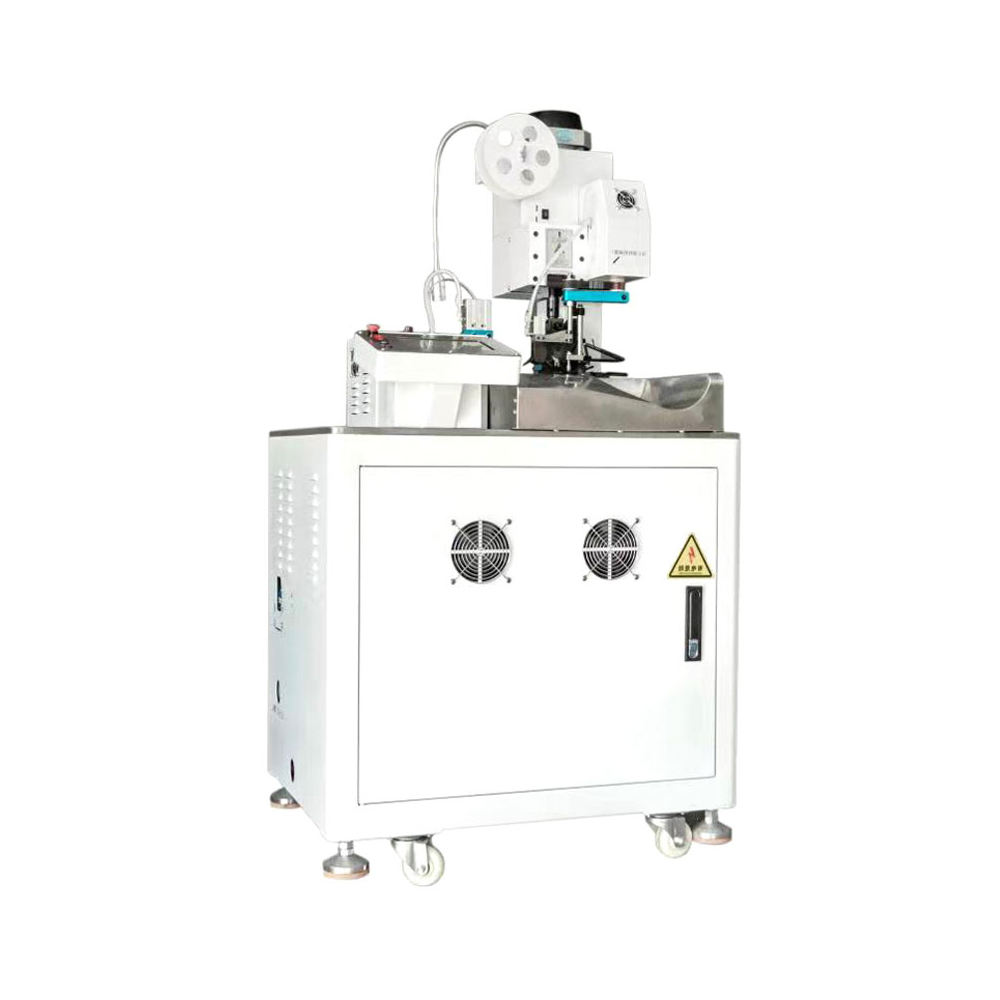

| Model | MN-A9005 |

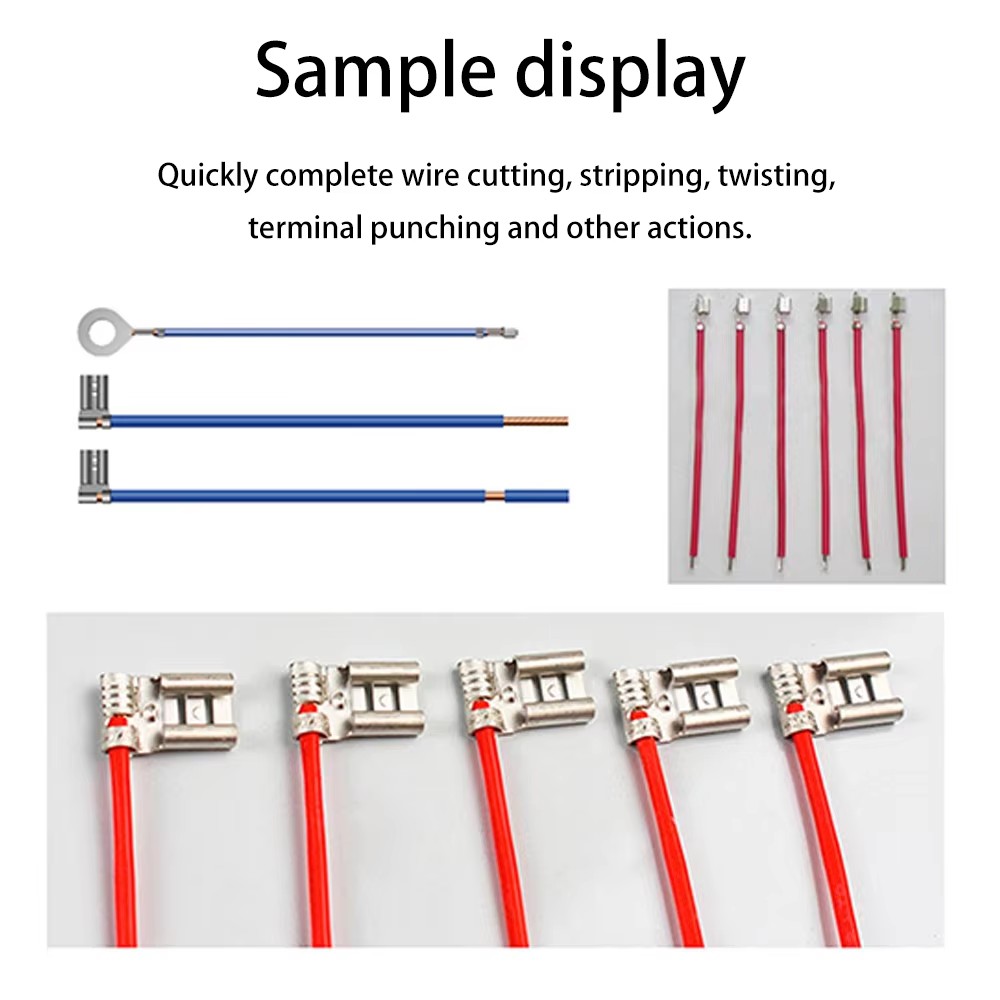

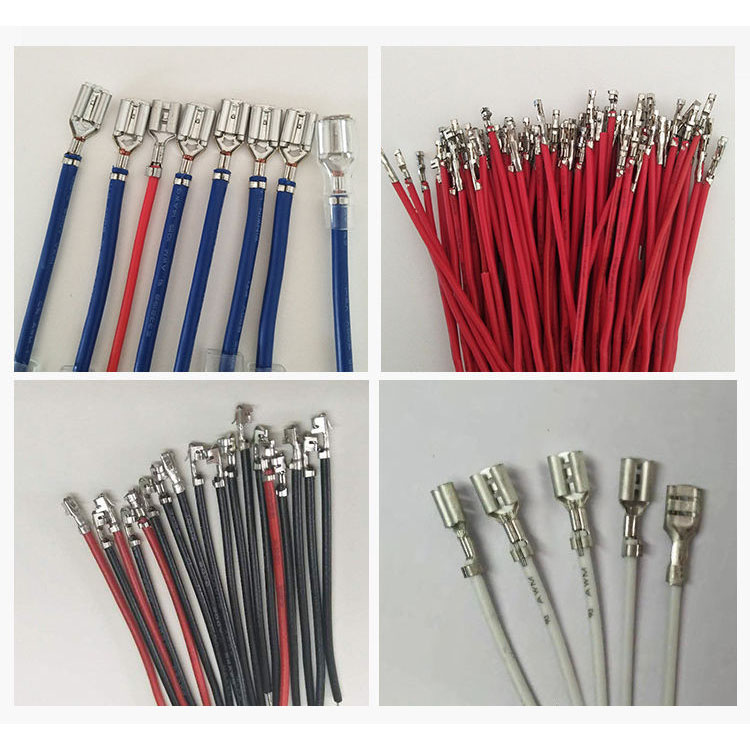

| Function | cut, strip, half-strip, twist(Optional), single end crimping |
| Production rate | less than 100mm, 4000~6000pcs |
| Available cable | AWG18~AWG32 |
| Cutting tolerance | ±1mm+L(cut length)*0.2% |
| Cutting Length | 20~9999mm(with twist) 8~9999(without twist) |
| Stripping length | 0.1~10mm |
| Crimping force | 2T |
| Twisting length | AWG32~AWG18(3mm~12mm) |
| Detector | wire on or not, crimp abnormal, air lower,stripping wire dectective |
| Air supply | 0.5~0.7MPA |
| Machine Dimensions(L*W*H) | 600*700*1500mm |

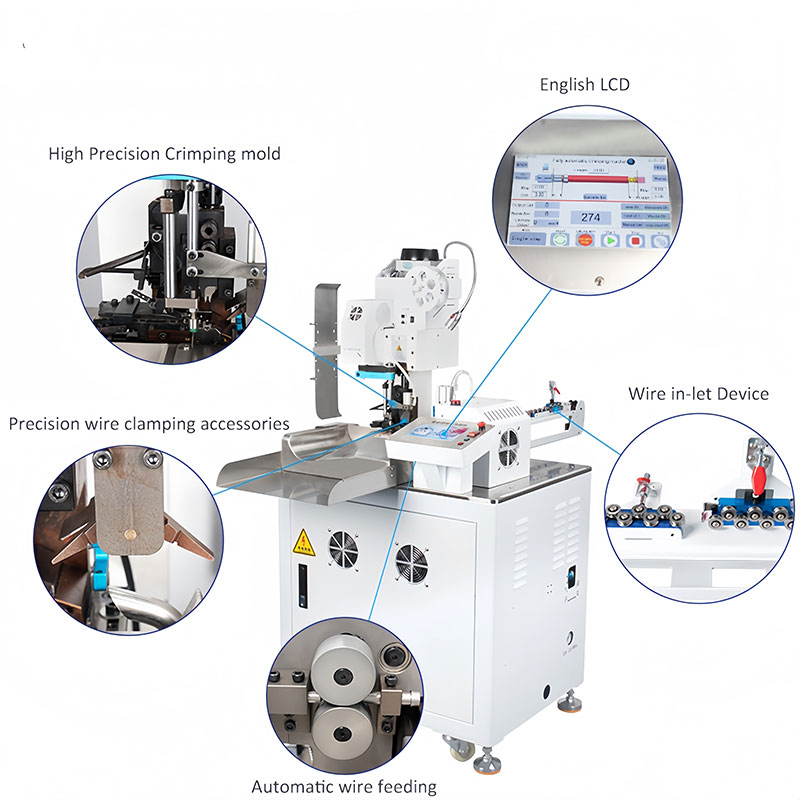

| Display | Touch panel |
| Machine Weight | 220 Kg |

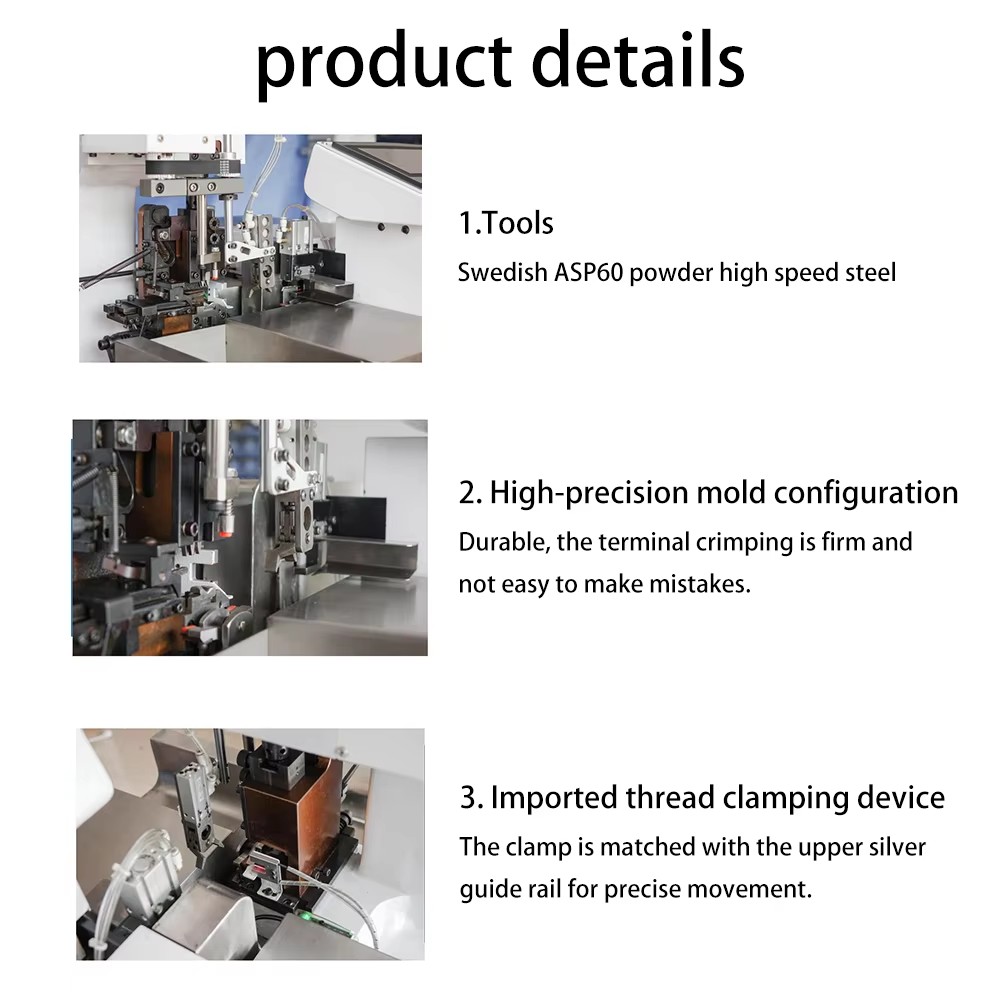

Taiwan Hl-WIN guide rail, PHT reducer.
Airtac Pneumatic Components.
The computer is adjusted, no pad is needed.
Semi-peeling at the back end.
Control: 32-bit microcontroller control system.
The whole stripping length is directly set by the menu of touch panel.
Fast technical performance adjustment, short adjustment time, easy operation
Machine suitable for OTp applicator and European applicator.
Special terminal can support customize.
