MN-A9030
Model:MN-A9030

ENQUIRE NOW!

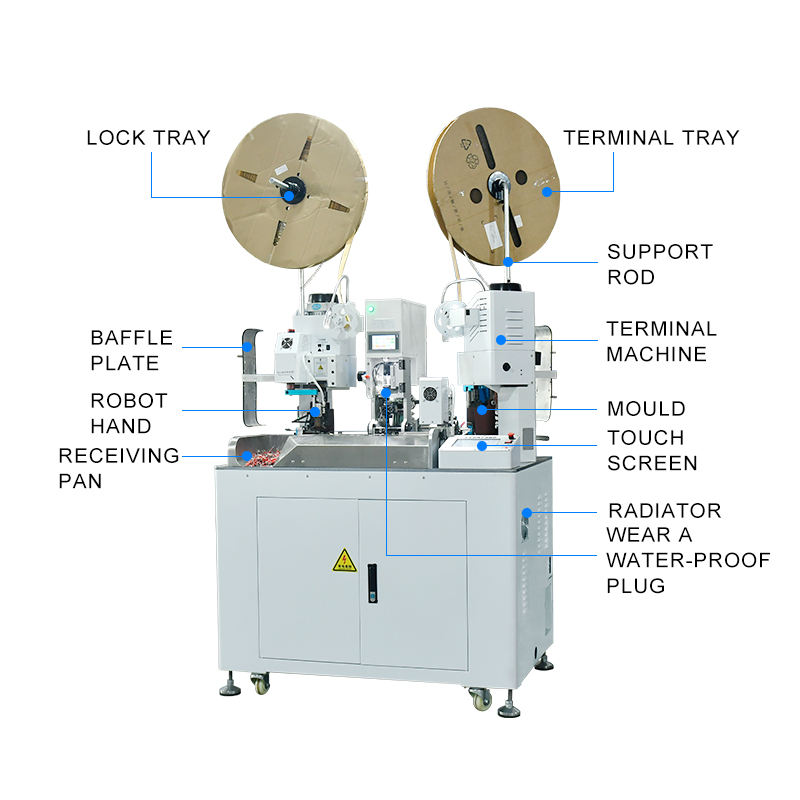

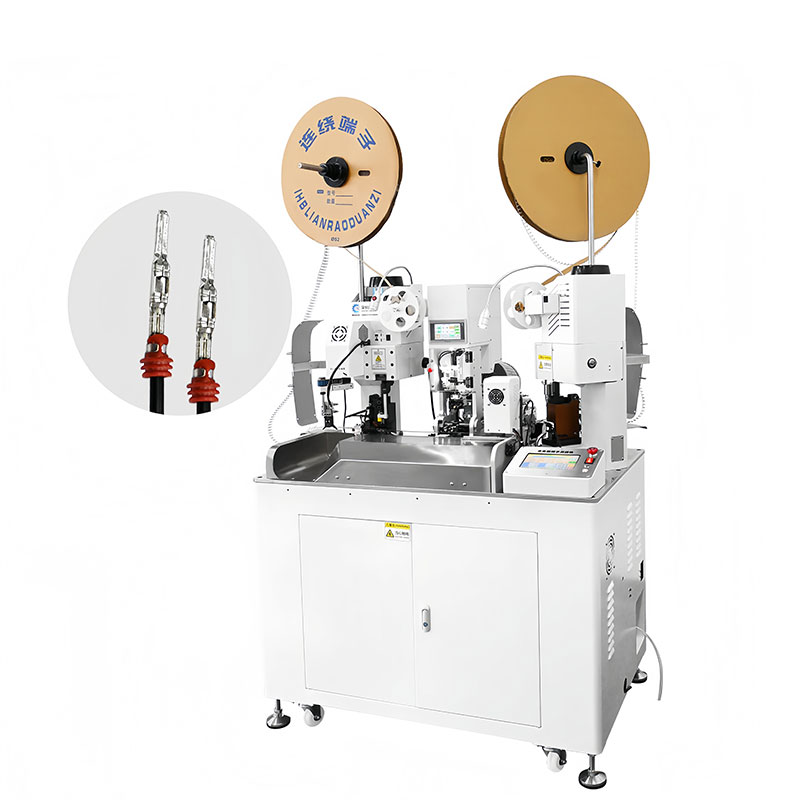

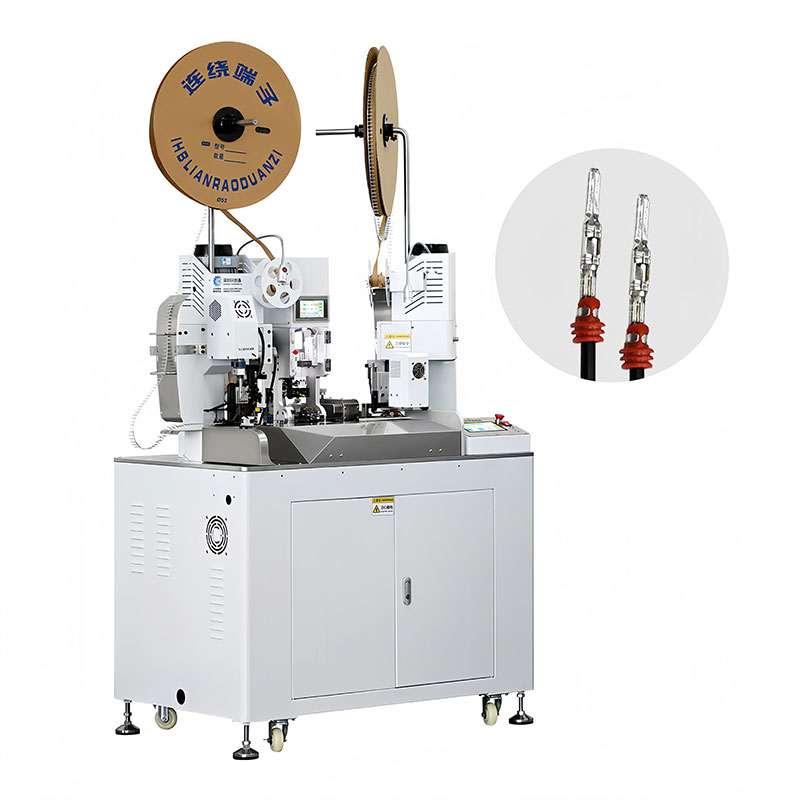

This is a fully automatic wire stripping crimping and sealing machine, one end sealing and crimping, another end only crimping terminal.
We can also close the sealing function in program if you only want to crimp terminal.

Specifications

Feature

Download

Model	MN-A9030
Function	Both ends cutting stripping, single end sealing
Applicable wire range	AWG28-AWG14
Cut length	50-9999mm (set 1mm unit)
Cut precision	±1 (1+0.002*L) mm, L=cut length
Stripping length	1.5-10mm
Crimp capacity	2.0T/3.0T
Power	220V/110V/50/60HZ
Productivity	3000pcs/hour
Compressed air	4-6kgf
External dimensions	700mm800mm1500mm (length, width and height)
Weight	348KG
CFM	Optional
Detection unit	Wire/Terminal loss; Wire tangling; Low air pressure

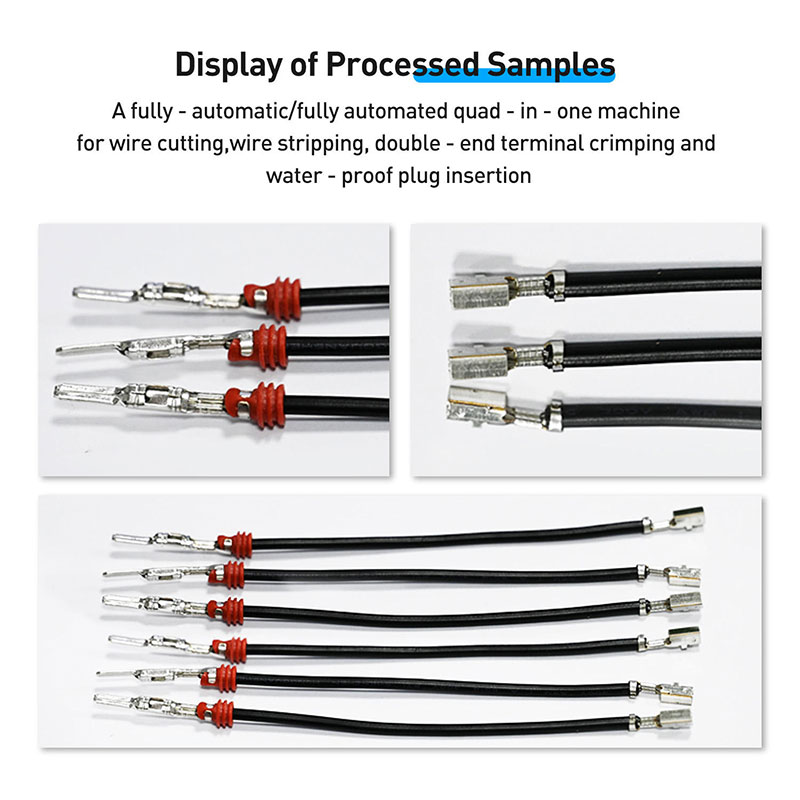

1.This is a fully automatic wire stripping crimping and sealing machine, one end sealing and crimping, another end only crimping terminal.
2.We can also close the sealing function in program if you only want to crimp terminal.
