Automatic Terminal Crimping Machine

Cut & Strip & Crimp

Fully automatic terminal crimping machine is an industrial device that uses automation technology to quickly and accurately crimp terminals (connectors) to wires. It is widely used in electronic manufacturing, automotive, communications, and other fields. It replaces traditional manual operations and improves production efficiency.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

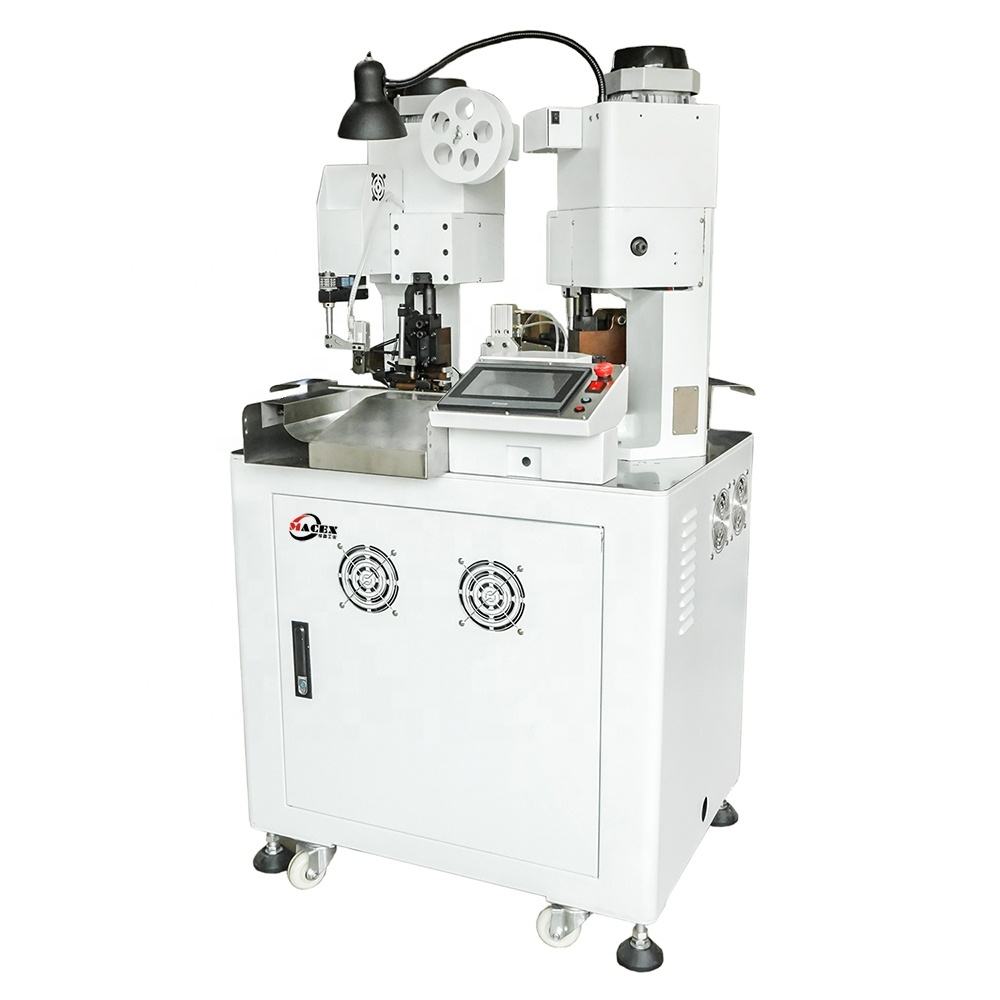

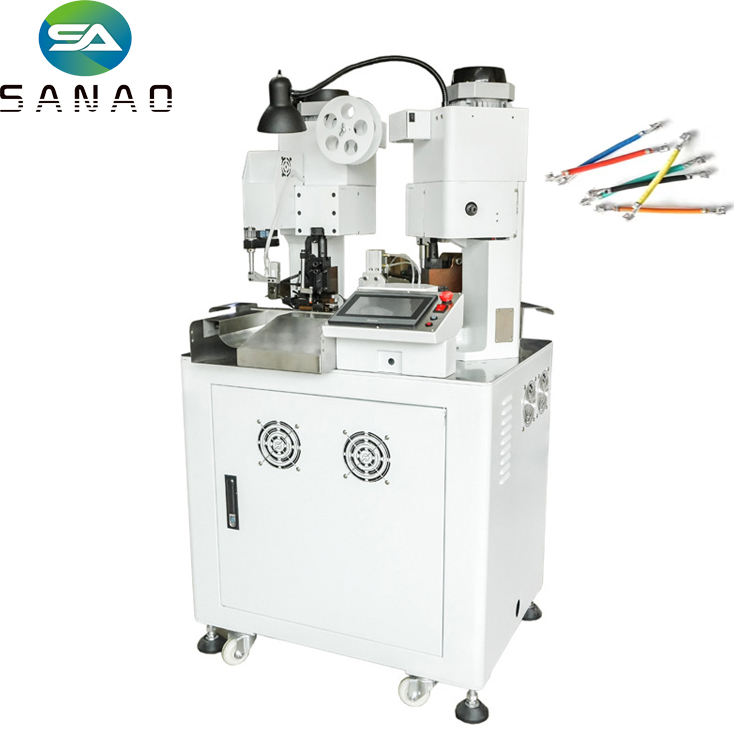

Automatic Terminal Crimping Machine

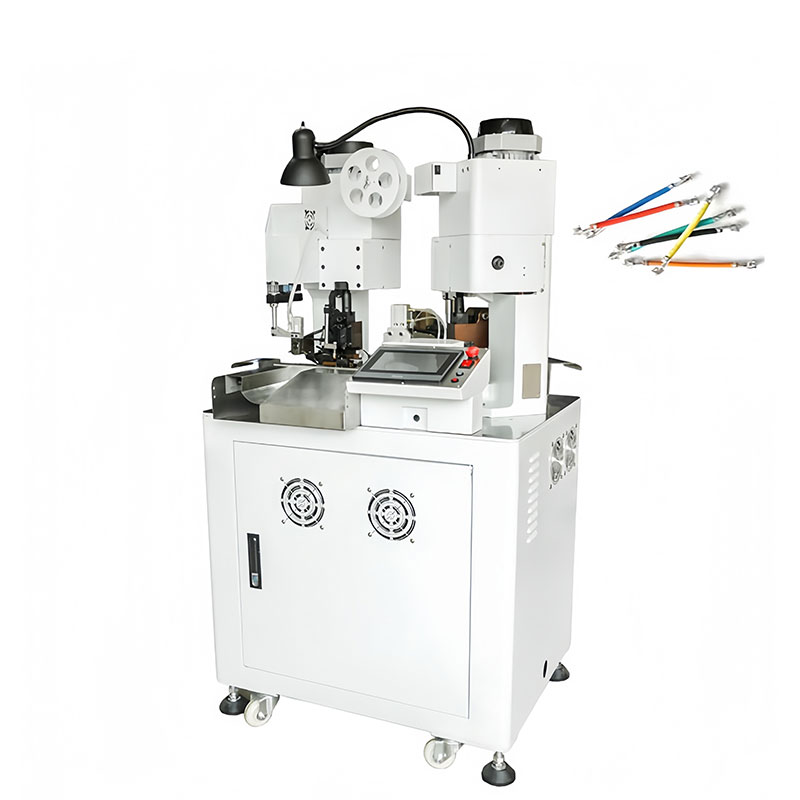

Model:MN-A9010

ENQUIRE NOW!

Automatic double-end wire cutting, stripping, crimping, stripping, cutting machine and terminal functions in one, high precision, fast speed and stable performance.
LCD, Chinese interface, HD, easy to operate
This machine adopts servo control, which is fast and low in noise.
The computer touches the digital tuning parameters, which is quick and easy.
After the test is completed, the machine automatically alarms when the wire, crimp, pressure, etc.
Innovative concept, OTP mode, horizontal mode, just replace the blade, automatic receiving terminal, waste paper, abandoned terminal.

Specifications

Feature

Download

Product	Automatic Terminal Crimping Machine
Model	MN-A9010
Power supply	Ac220B
Productivity	4000pcs/h(within 200mm length)
Processing range	AWG#30-AWG#18/AWG#20-AWG#14
Cutting length	40mm-9999mm
Stripping length	0.1-10mm
Pressing ability	1500kg
Air pressure	0.4-0.7Mpa
Dimension	1000x800x1450mm
Weight	370kgs

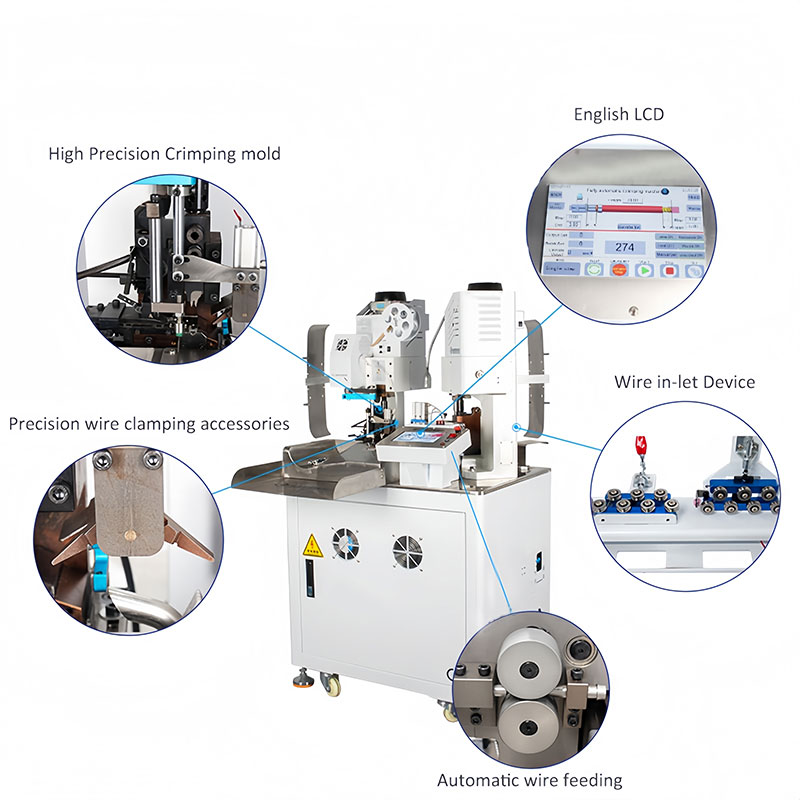

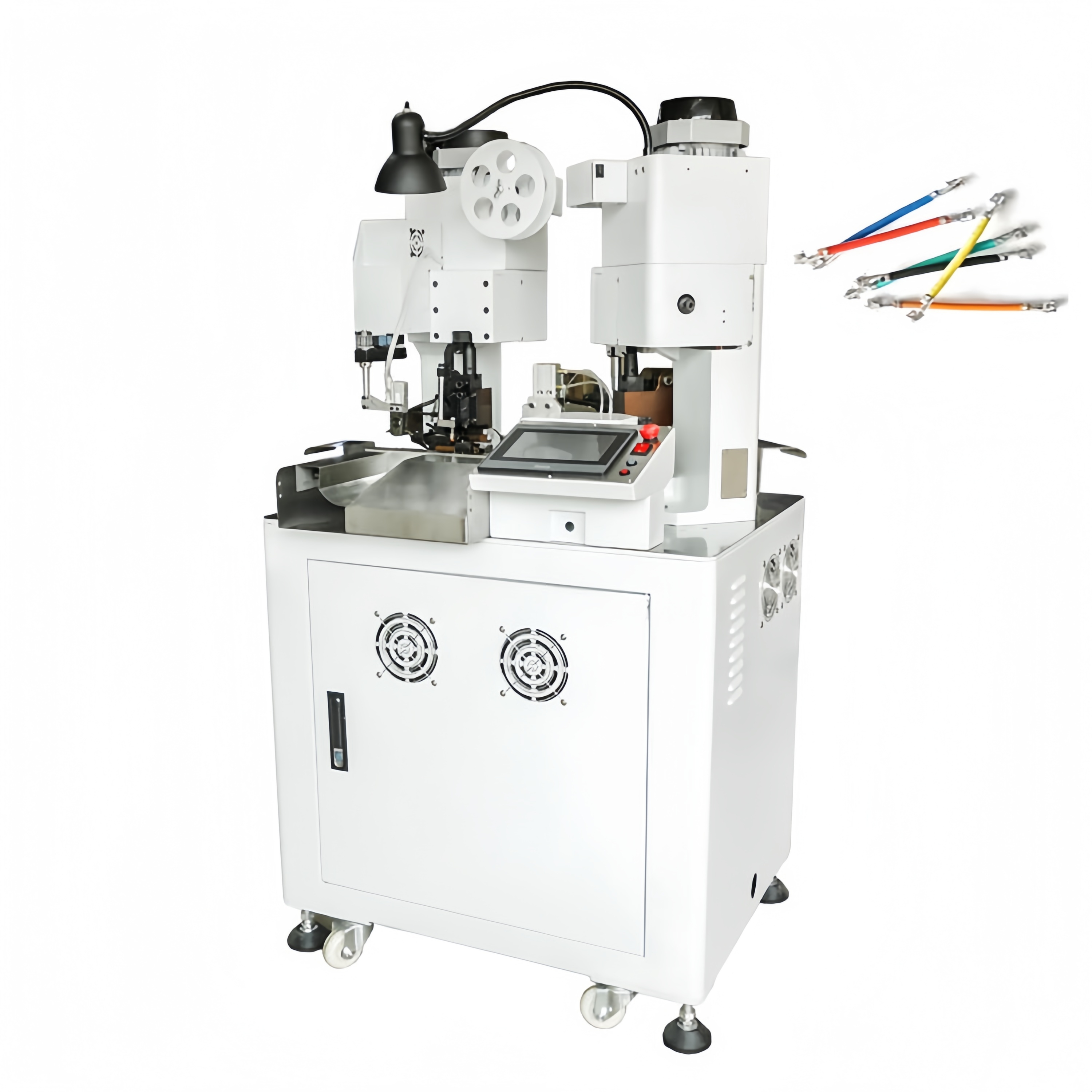

MN-A9010 Automatic Double EndsTerminal Crimping Machine

Features:
Automatic double-end wire cutting, stripping, crimping, stripping, cutting machine and terminal functions in one, high precision, fast speed and stable performance.
LCD, Chinese interface, HD, easy to operate
This machine adopts servo control, which is fast and low in noise.
The computer touches the digital tuning parameters, which is quick and easy.
After the test is completed, the machine automatically alarms when the wire, crimp, pressure, etc.
Innovative concept, OTP mode, horizontal mode, just replace the blade, automatic receiving terminal, waste paper, abandoned terminal.
