High Efficiency Wire Winding and Binding Machine, Cable Wire Coil Winding Machine

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

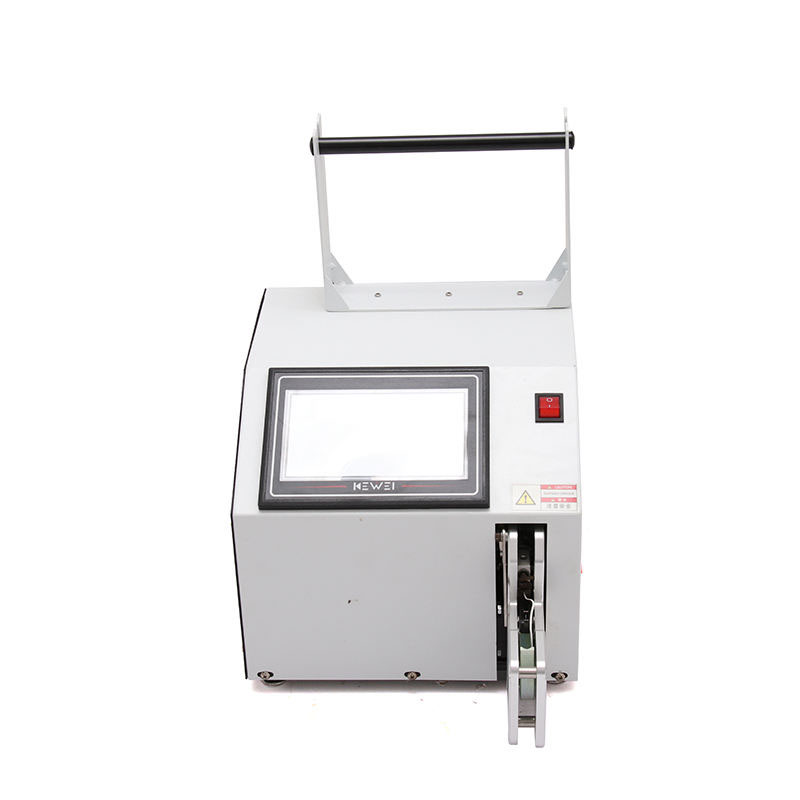

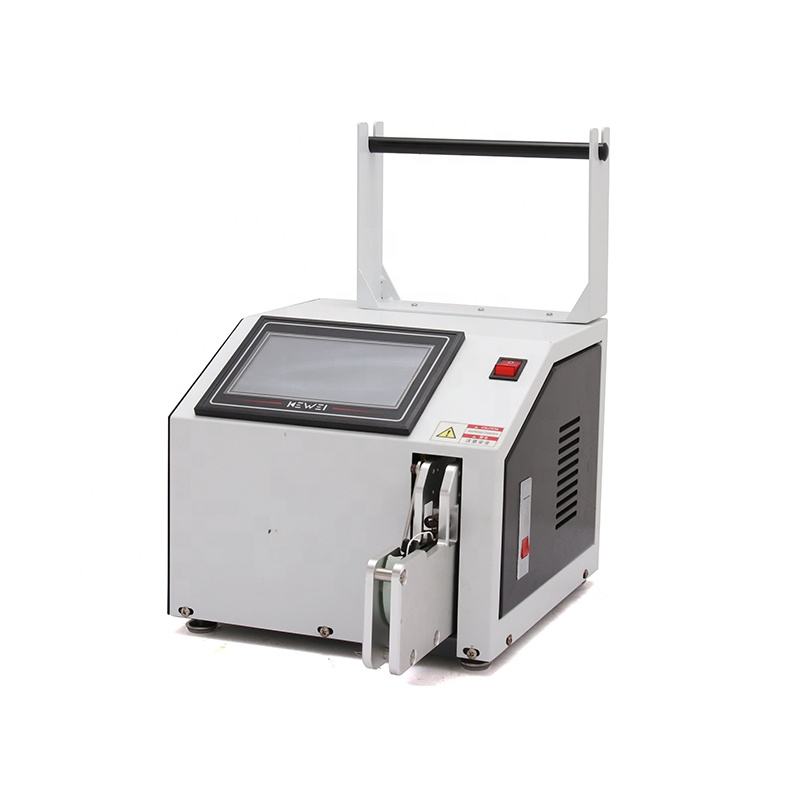

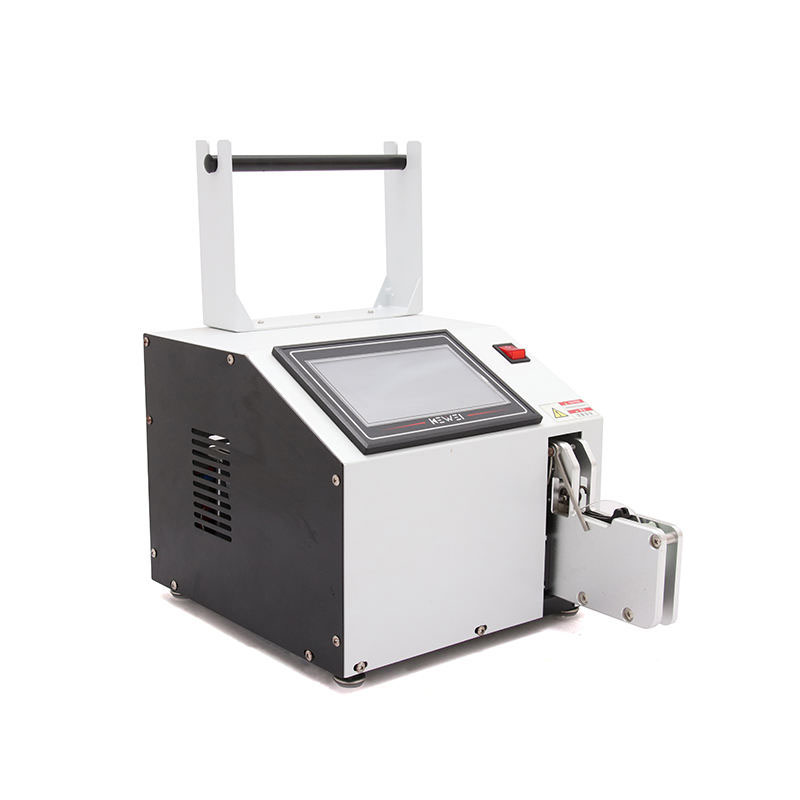

Wire Tying & Bunding Machine
Model:MN-W905

ENQUIRE NOW!

Model: MN-W905
TyingOD: 5-35 mm / 15-50mm / 40-80 mm
Tying speed: 1s/time
Spool height: 200 mm

Specifications

Video

Download

Model	MN-W905-1	MN-W905-2	MN-W905-3
TyingOD	5-35 mm	15-50mm	40-80 mm
Tyingspeed	1s/time	1s/time	1s/time
Spoolheight	200 mm	200 mm	200 mm
Noiselevel	<70dB(A)	<70dB(A)	<70dB(A)
Powersupply	110,220V(50-60 Hz)	110,220V(50-60 Hz)	110,220V(50-60 Hz)
Operation interface	Bilingual	Bilingual	Bilingual
Dimension	500300400 mm	500300400 mm	500300400 mm
Weight	40kg	42kg	44kg

Feature

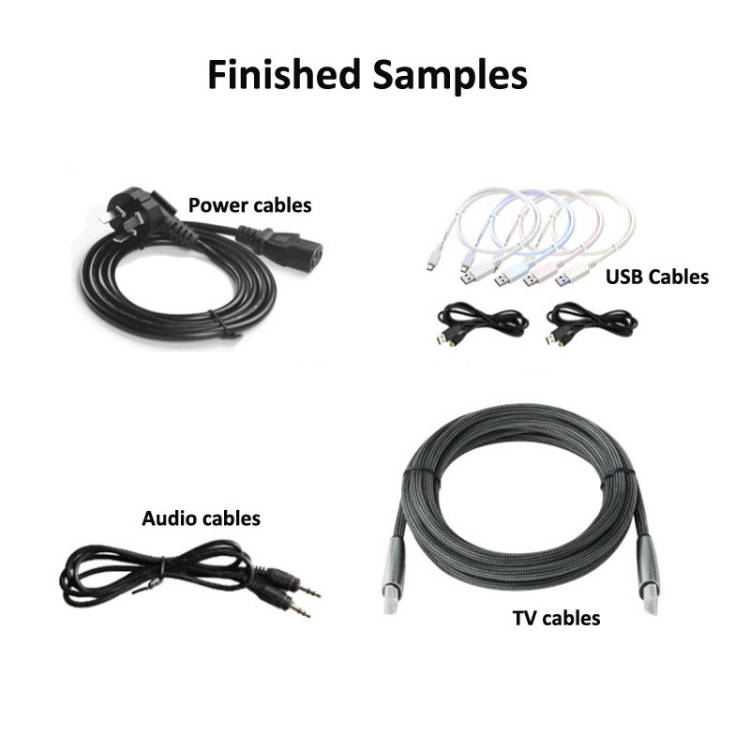

This machine supports both 8-shaped and circular winding, which can be easily switched via the touchscreen. It adapts perfectly to USB cables, power cords, data cables, and other harnesses, meeting diverse packaging needs.

With a speed of up to 1600 PCS/H and only 1 second per tie, it drastically reduces manual labor and boosts production efficiency.

The intuitive touchscreen allows you to set winding turns. The low learning curve ensures operators can master the machine quickly, minimizing setup time and errors.
