Model | MN-C505F |
Material outer diameter | 4 - 35 mm (can be customized) |
Cutting length | 1 - 99999.9 mm |
Cutting increment | 0.1 mm |
Cutting tolerance | 0.005 * L (L = cutting length) |
Cutting mode | By motor |
Cutting stroke | 30 mm |
Productivity | 100000pcs./H |
Control system | PLC |
Power supply | 110, 220 V (50 - 60 Hz) |
Power | 1000 W |
Dimension | 680 * 605 * 520 mm |
Weight | 75 kg |

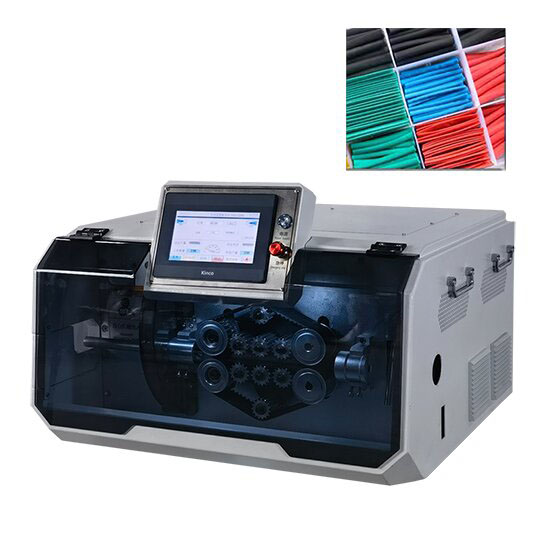

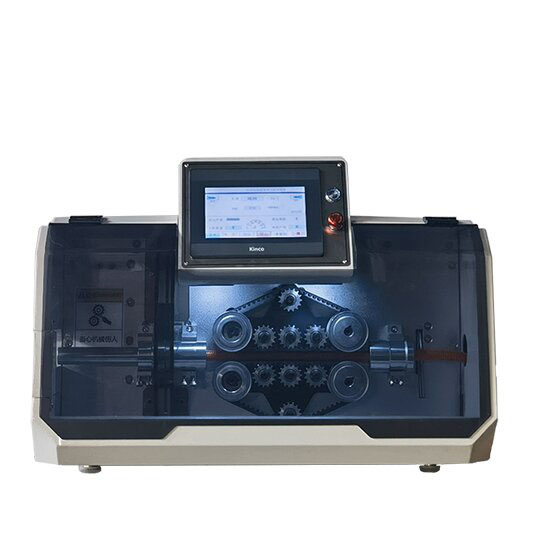

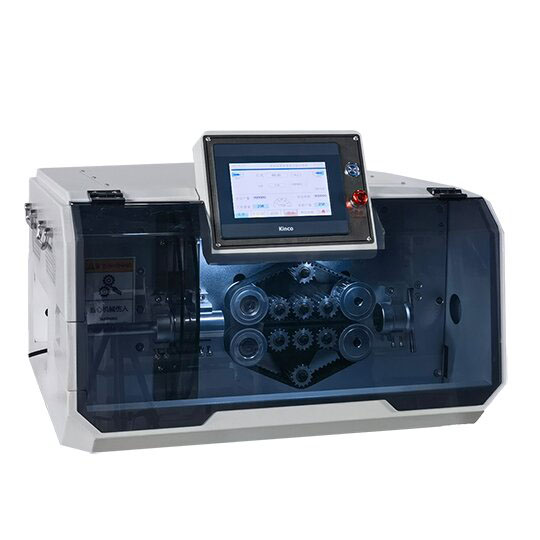

This fully automatic tubing cutting machine is designed for cutting hard plastic PVC tubes and flexible stainless steel pipes. It integrates automatic feeding, length setting, counting and cutting functions, greatly improving production efficiency and reducing labor cost.
Adopting PLC control system and touch screen operation, the machine is easy to set cutting length, speed and quantity. It provides high-precision cutting with smooth and burr-free incision, suitable for mass production in plumbing, construction, automotive, hardware and electronics industries.

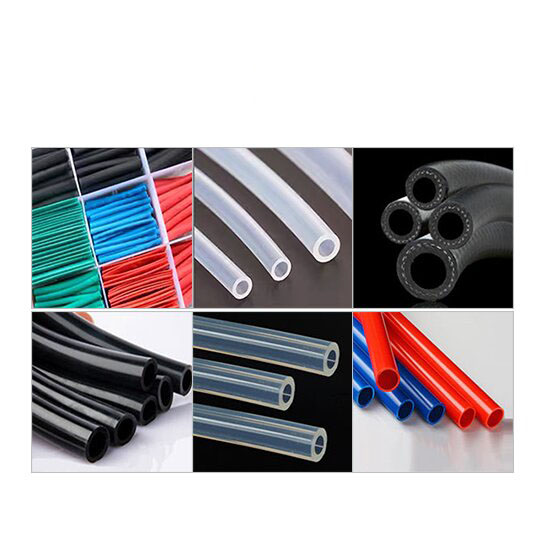

It can process various materials including hard PVC tube, plastic tube, flexible stainless steel pipe, metal hose and other similar tubing. With stable structure, low noise and reliable performance, it is ideal automatic tubing cut equipment for factories and production lines.
