High-Speed Automatic Wire Stripping Machine for Electrical Cables

Cut & Strip

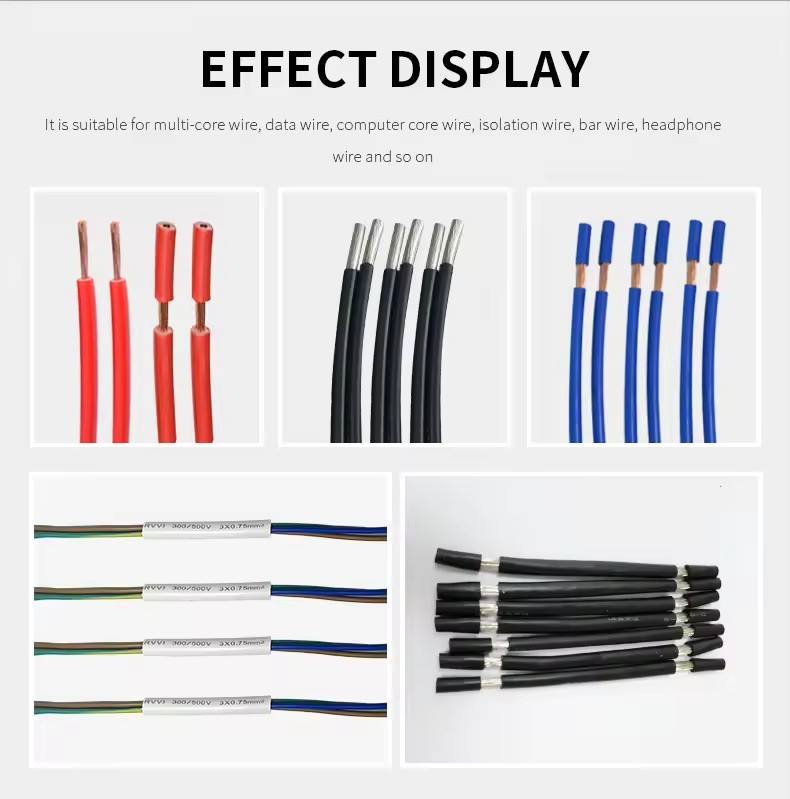

Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

Wire Cutting & Stripping Machine (OD 0.75-30mm2)
Model:MN-S110Y

ENQUIRE NOW!

Model: MN-S110Y
Wire Size:0.75-30mm²
Cutting length: 1–99,999.9 mm
Stripping length (side I):1–99,999.9 mm
Stripping length (side I):1–350 mm
Max. guide tube diameter:16mm

Specifications

Feature

Download

Function	Cutting, Stripping
Conductor cross-section	0.75–30 mm²
Cutting length	1–99,999.9 mm
Cutting length tolerance	<0.002×L (L=cutting length)
Stripping length (side I)	1–1000 mm
Stripping length (side II)	1–350 mm
Max. guide tube diameter	16 mm
Production rate	3500 pcs/h
Blade material	Steel

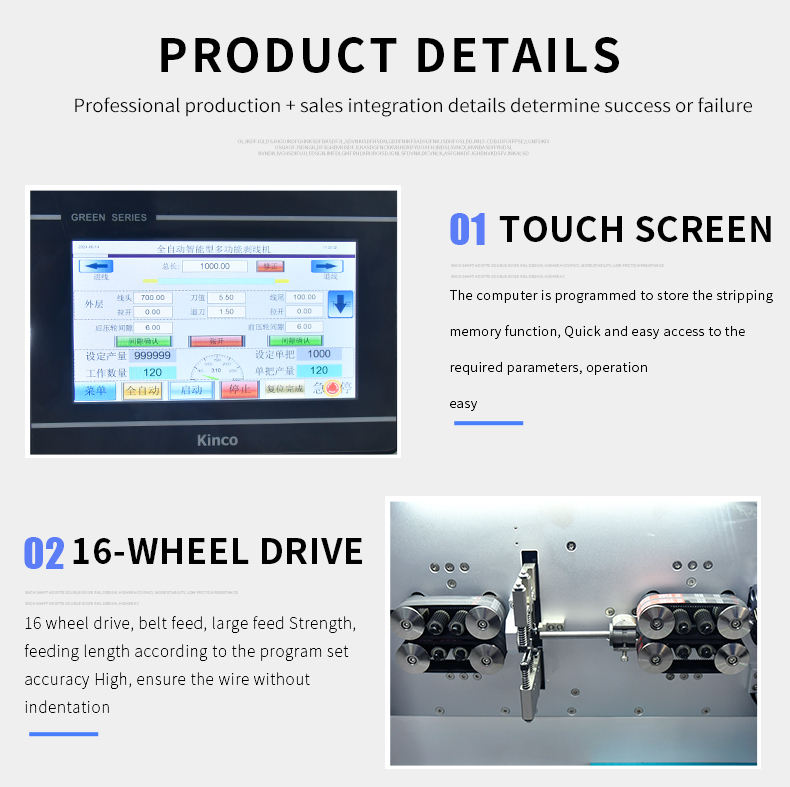

Display	7-inch touch screen
Drive system	16-roller guide mechanism
Power supply	110/220 V (50–60 Hz)
Power consumption	1 KW
Air pressure connection	0.5–0.7 MPa
Weight	140 kg
Dimensions	707×590×1140 mm

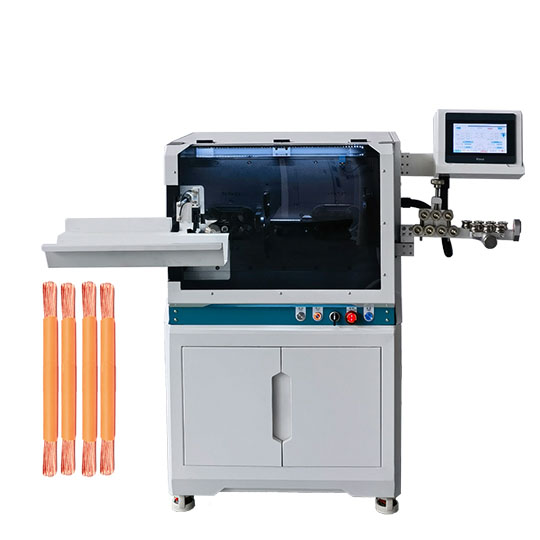

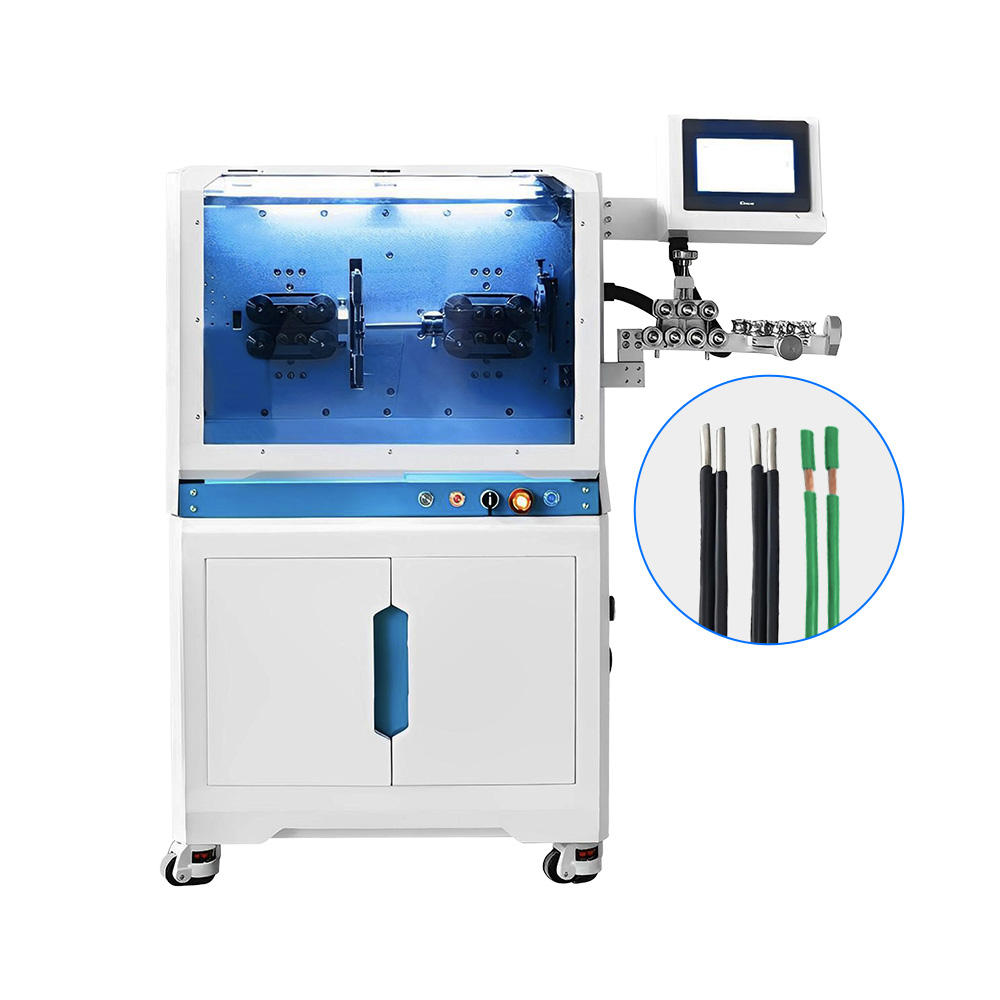

This is a fully automatic cable cutting and stripping machine. The applicable wire size range is 0.75-30 mm².

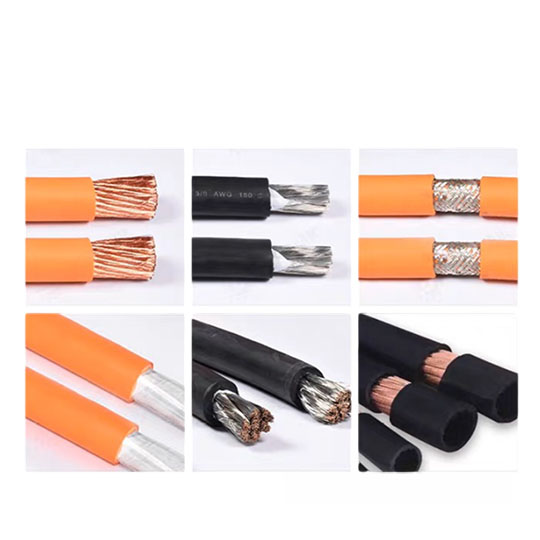

Function: cable cutting, stripping outer jacket

Optional: MES system, Internet of Things system, fixed-point coding function, middle stripping function, external auxiliary

equipment alarm;

User-friendly system with intuitive operation via 7” color touchscreen;

Modular interface, easy to link accessories and peripheral equipment;

Modular design, can be upgraded in the future;

Various accessory options to customize the system. Special cable processing, non-standard customization.
