| Model | MN-X635 |
| Function | New Energy Lines, Power Lines, Coaxial Lines, Multi-Core Lines, etc |

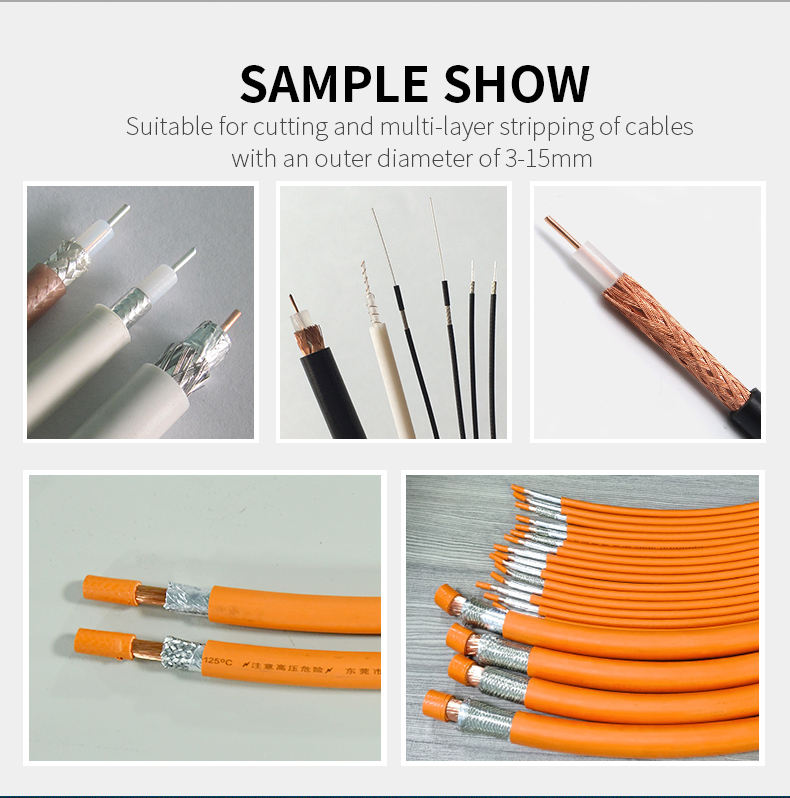

| Cable diameter | 3-15mm |
| Cutting length(L) | 50-999999mm |
| Cutting length accuracy | ±0.5+Lx1% |
| Stripping length | Front(right)side:220 mm |
| Rear(let)side:130 mm | |
| Production rate | 400-800 pcs/h |
| Datalibrary | 99 programs |
| Rated power | 2500 W |
| Multi-step strip | Max 6 |
| Display | 7"color touchscreen,English/Chinese [other languages on request] |
| Compatible peripherals | Wire pre feeder,robot arm,conveyor belt |
| Power supply | AC 110-220V±10%,50/60 Hz |
| Air supply | 0.4-0.6 MPa(clean and dry air) |
| Dimensions | L1000xW600xH 1350 mm |
| Weight | 220 KG |
| CE-Conformity | Complies with CE equipment gudelines relative to mechanical and electrical safety an electromagnetic compatibility. |
Mainly used for single-layer or multi-layer processing of wire

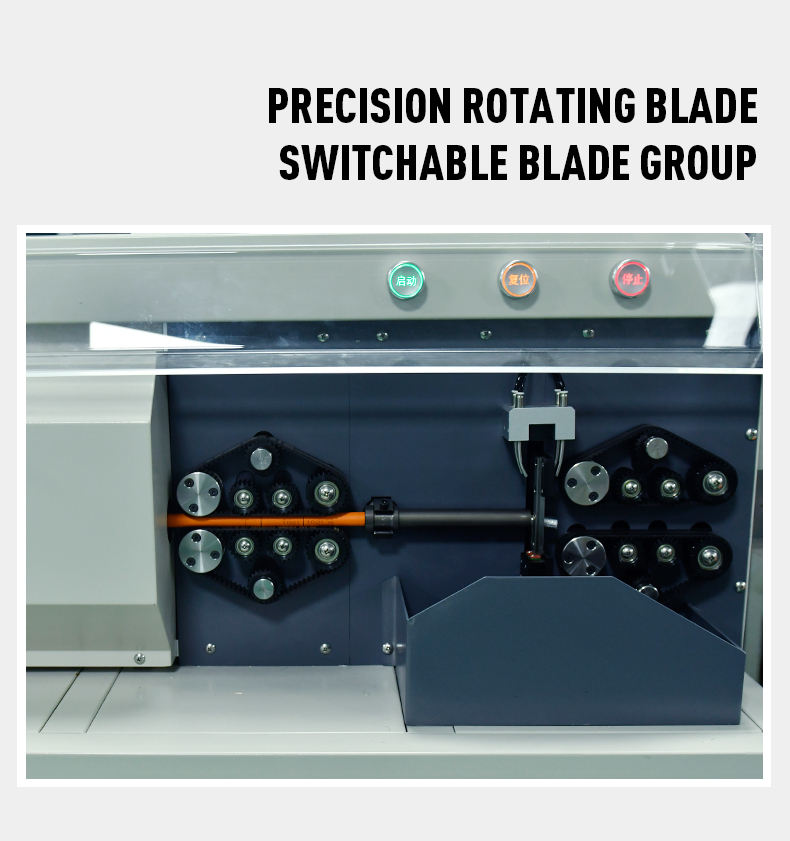

Precision rotating blade and switchable mobile blade group, combined with servo drive, achieve precise automatic length setting, rotary cutting, and peeling
High precision, flat cutting surface, and good wire stripping effect
It can store 99 types of wire stripping files .
