Cut & Strip
Fully automatic wire stripping machine is an industrial device that uses cutting tools or other means to achieve precise stripping of the insulation layer of wires/cables without damaging the insulation. It is widely used in fields such as electronics manufacturing, automotive, communications, and new energy. It supports various types of wires, including single-core wires, multi-core wires, coaxial wires, shielded wires, and more.
Home Porducts Cut & Strip
Products
Our products have passed 3C certification, with reliable quality and durability.
Products Category
< >

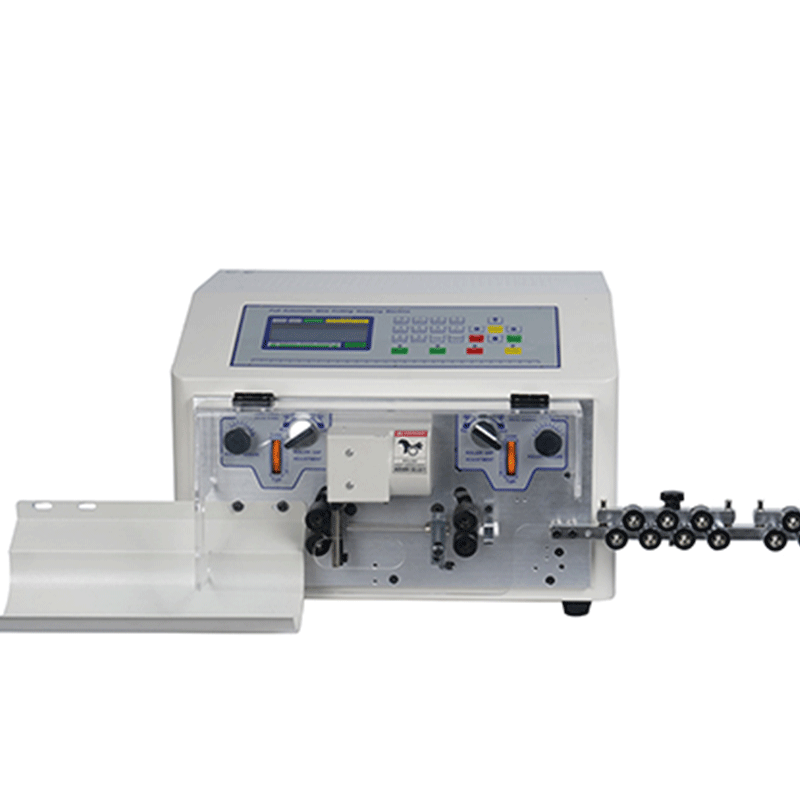

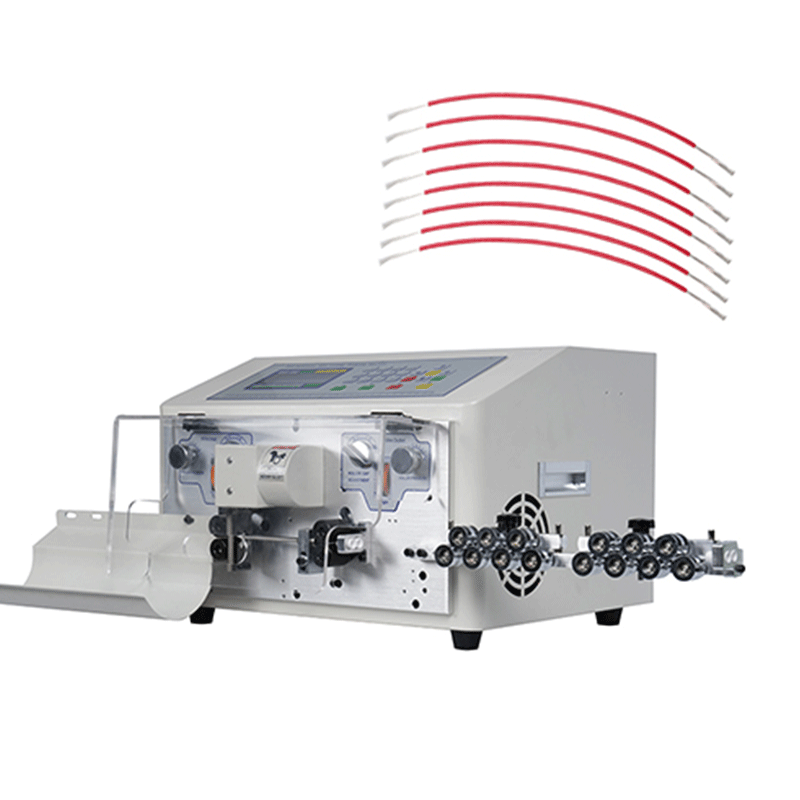

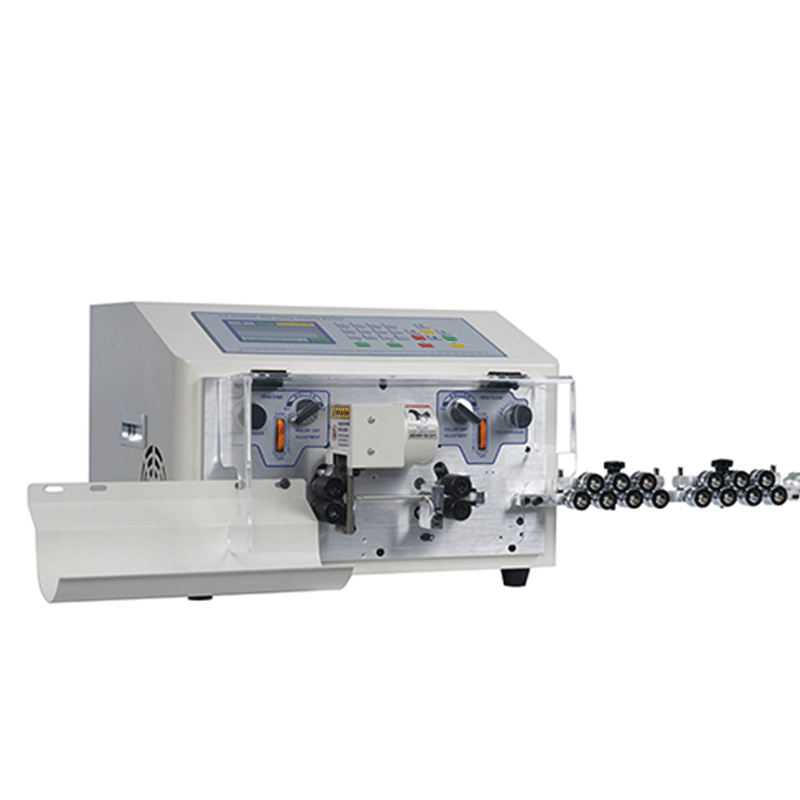

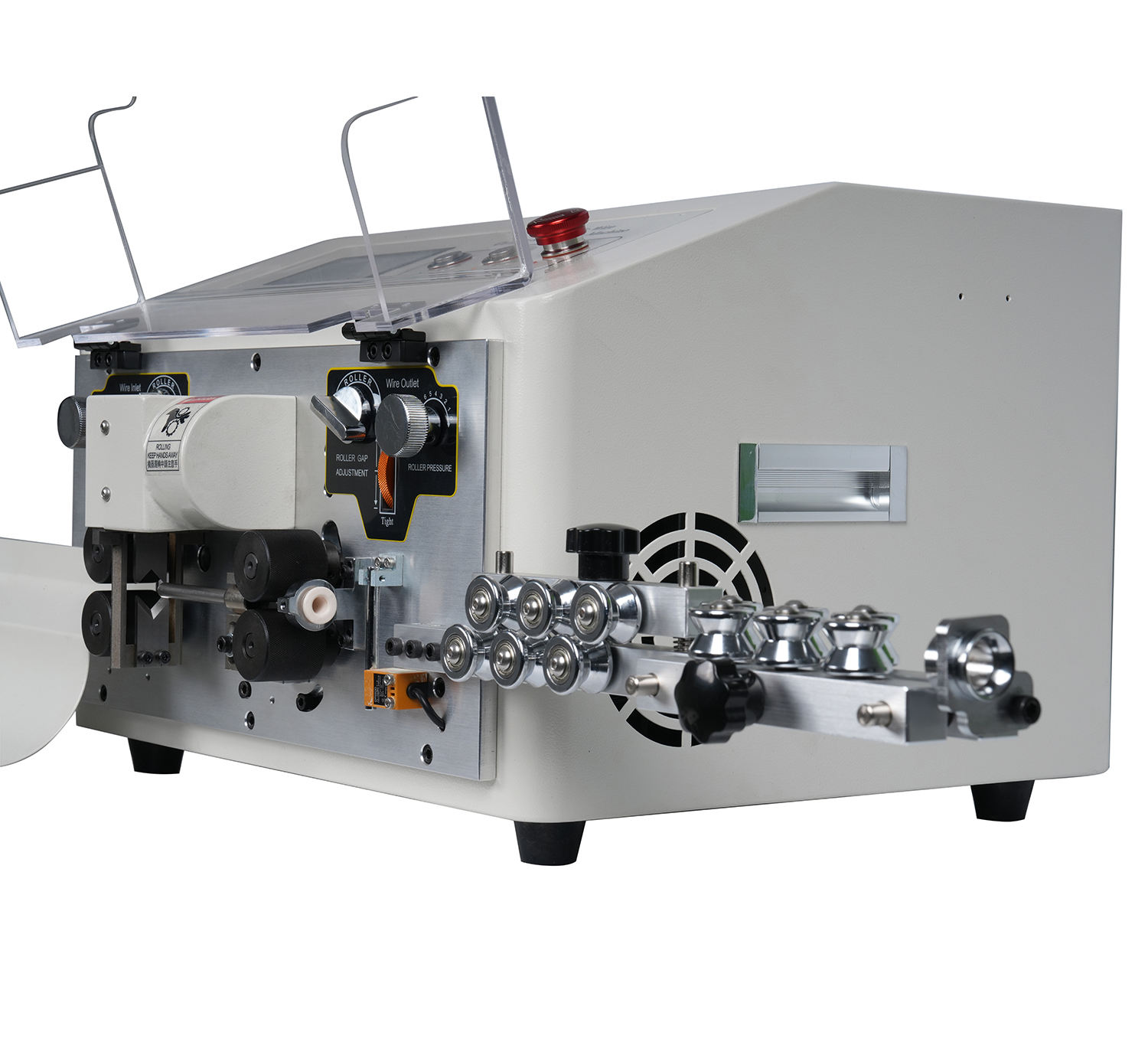

Wire Automatic Computer Stripping Machine（0.1-4.5mm²）
Model:MN-S185A
ENQUIRE NOW!
1. Model: MN-S185A

2. Stripping length:head 0-35mm, end 0-15mm

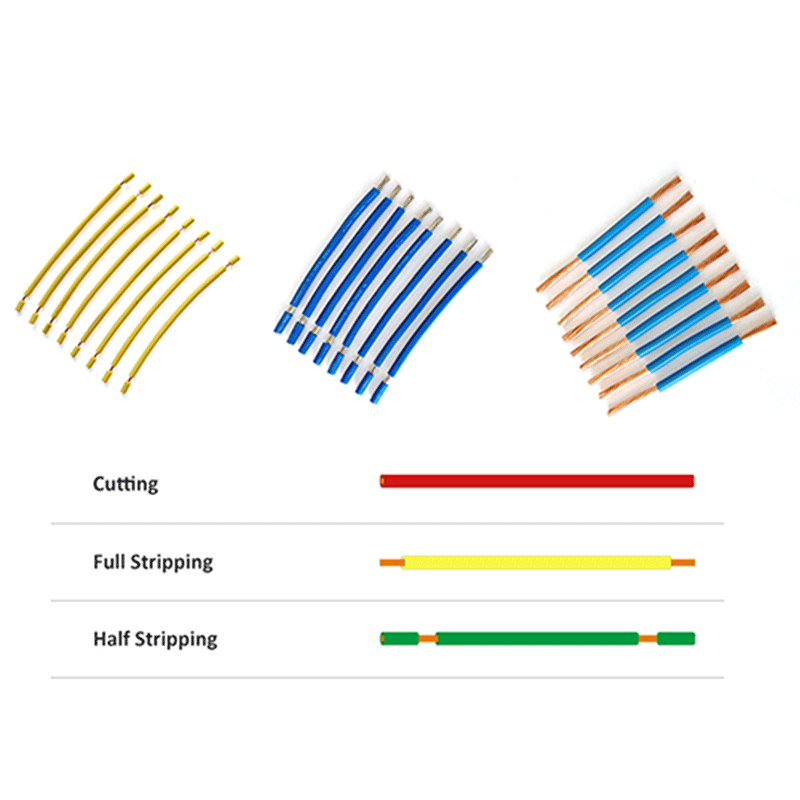

3. Intermediate stripping: eleven place strip

4. Wire cross section:0.1-4.5mm2

5. Suitable wire stripping: PVC/PTFE/silicone cable/fiber glass wire
Specifications
Feature
Download
Metric
Imperial
Model  MN-S185A
Wire Material  Wide range of industrial wires
Wire Size 0.1 - 4.5mm²
Cutting length  1 - 9999 mm
Cutting length tolerance  < 0.002 * L
Stripping length (side I) 0 - 35 mm
Stripping length (side II) 0 - 15 mm
Maximum guide tube diameter  6 mm
Blade material  Tungsten steel
Productivity 5000 - 10000 pcs./h (L = 100 mm)
Power supply  110_ 220 V (50 - 60 Hz)
Power 200W
Weight  31 kg
Machine dimension 430 * 410 * 400 mm
Drive Four wheel drive
Display mode LCD liquid crystal display in Chinese and English interface

    Our product is to use LCD screen man-machine dialogue mode, with nice appearance, simple operation, convenient maintenance, stable performance, speed, precision higher main features.


    Wire length can set arbitrary, thrum and the line end parameters can also according to the customer request to change, different degree of finish stripping wires, also has the high tension line of line, casing of the shear etc.
