Tape Wrapping Bundling Machine

Tape Wrapping

Tape wrapping machine is an automated device primarily used to wrap tape (such as protective film, insulating tape, packaging tape, etc.) around the surface of an object in a specific manner to achieve functions such as protection, fixation, or sealing.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

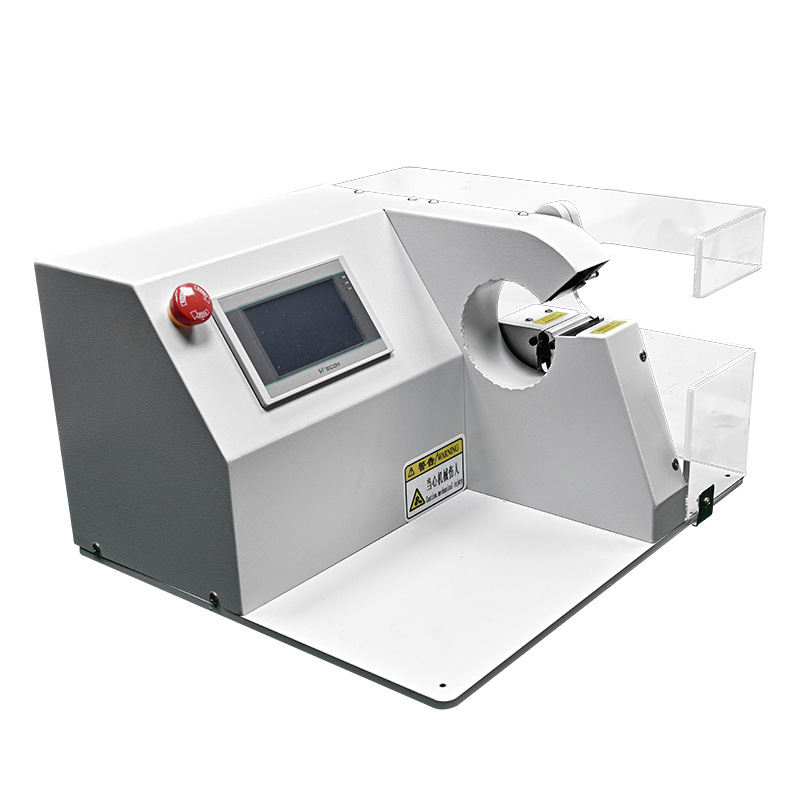

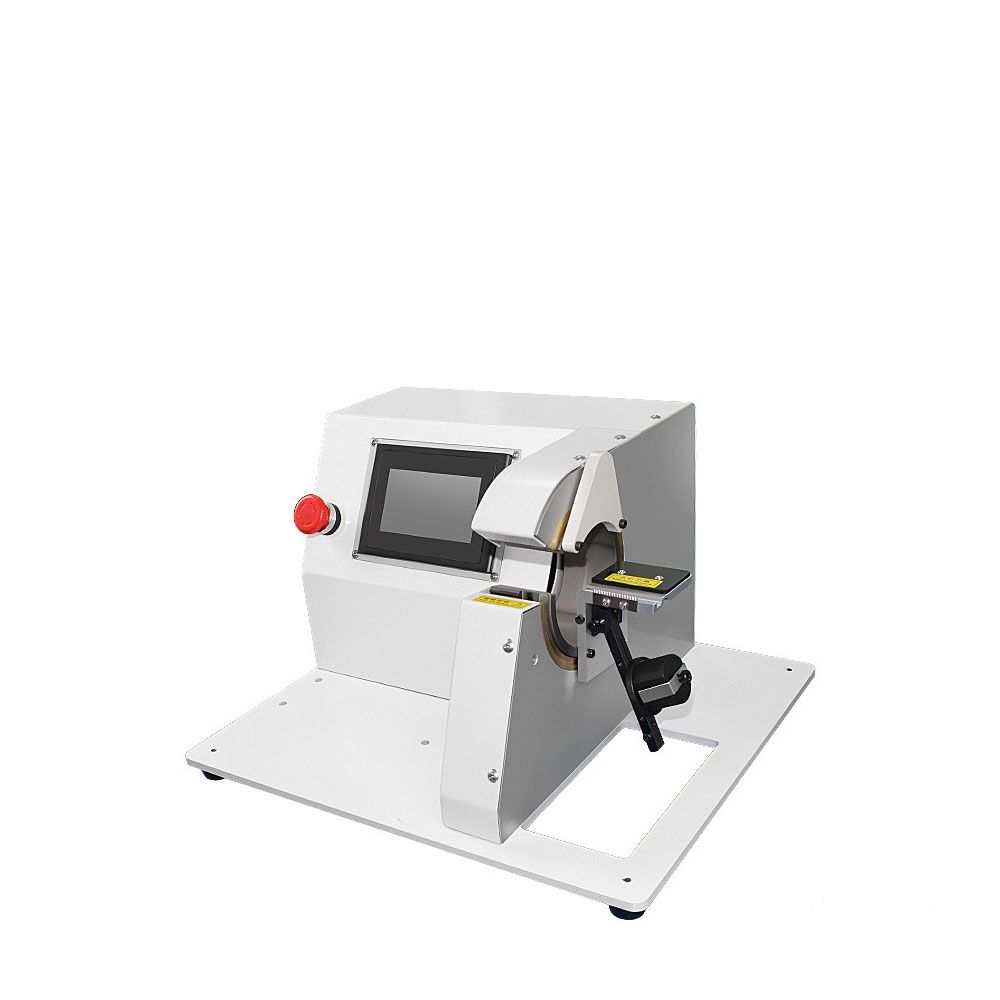

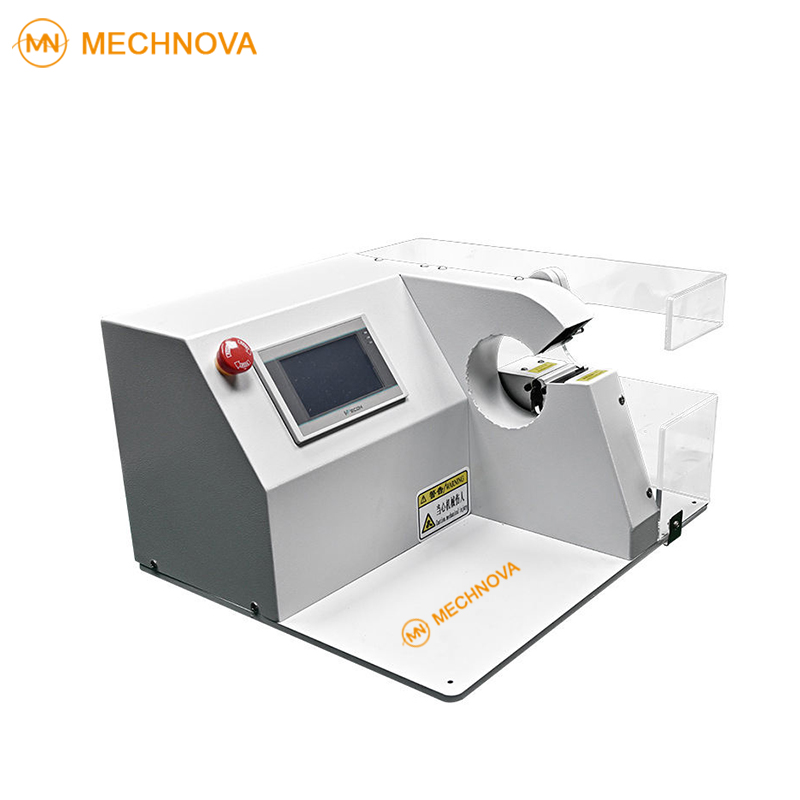

MN-G915T
Model:MN-G915T

ENQUIRE NOW!

MN-G915T supports wire harness continuous & spot taping. It can work with different types of material tape without back paper, such as cloth tape, PVC tape, etc. It's mostly used for continuous taping.

Specifications

Video

Download

Wrapping outer diameter	3 - 25 mm 0.1 - 3 mm/25 - 30 mm: confirmed according to the material
Tape width	9 - 19 mm
Tape inner diameter	38/32 mm
Tape outer diameter	< 110 mm
Power supply	110, 220 V (50 - 60 Hz)
Weight	35 kg
Wooden case dimension	400 * 410 * 340 mm

Feature

MN-G915T Features:
MN-G915T supports wire harness continuous spot taping. It can work with different types of material tape without back paper, such as cloth tape, PVC tape, etc. Its mostly used for continuous taping.
Features:
1. Different materials tapes are available
2. The finished products maintain flat, no wrinkles

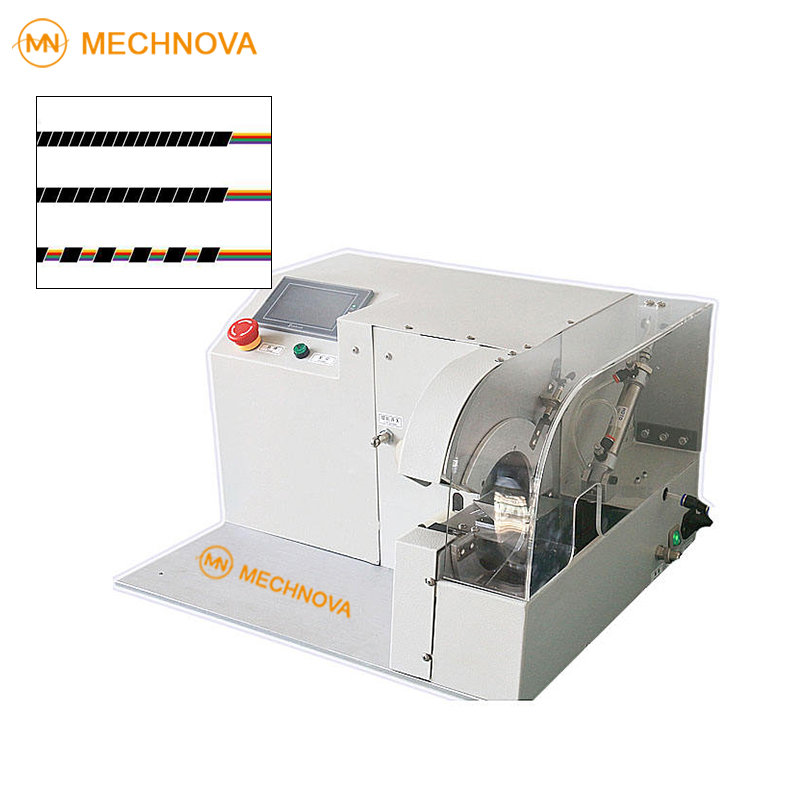

3. Support different winding method switching: same position point winding, different positions spiral winding
4. Wrapping laps and wrapping speed can be set, display the output
5. Changing blades very quickly
