| Model | MN-G915XL |
| Available Wire Harness Dia | Φ2-30mm ( 40 mm can customized ) |
| Tape Width | 5-25mm |
| Wrapping Length | No limit |
| Power Supply | 110/220VAC,50/60Hz |
| Dimensions | 65*52*40cm |
| Weight | 56KG |
| Main engine speed (rpm) | 4500 |

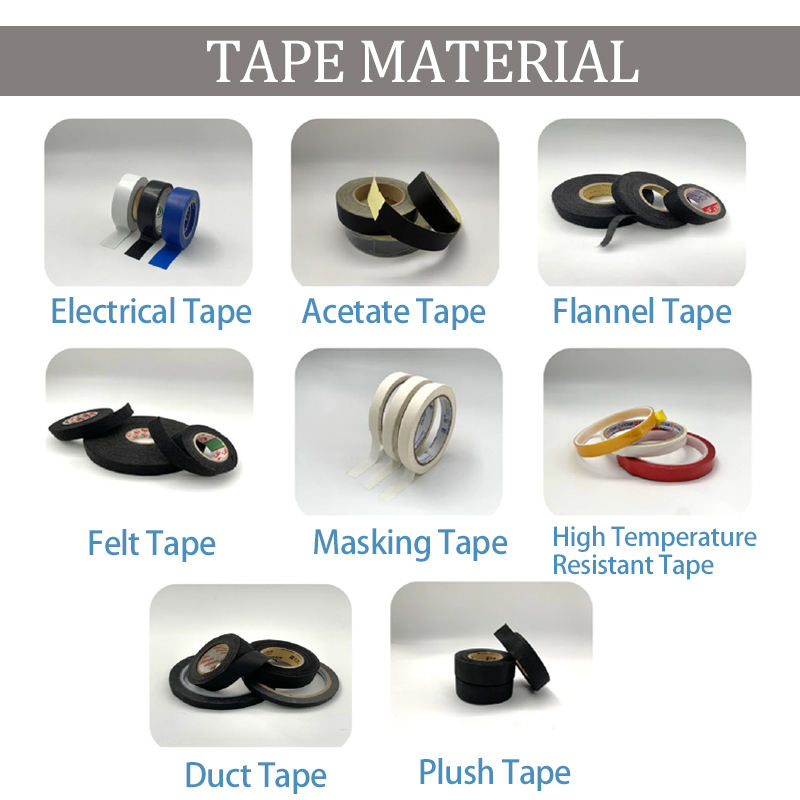

| Applicable tapes | flannel, wax tape, electrical tape |
| Diameter of tape | less than 110mm (customizable within 170mm) |

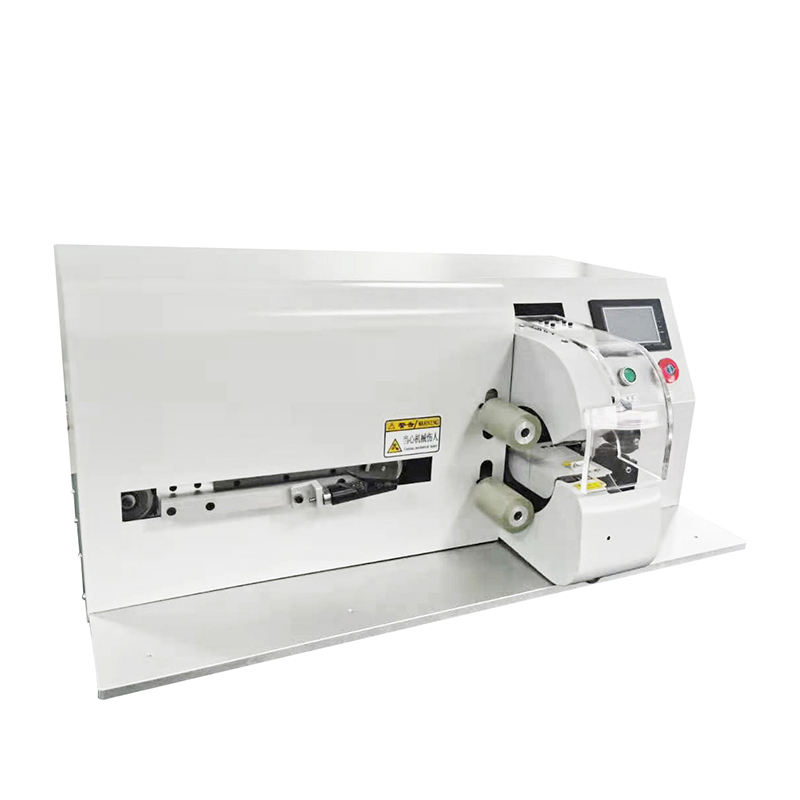

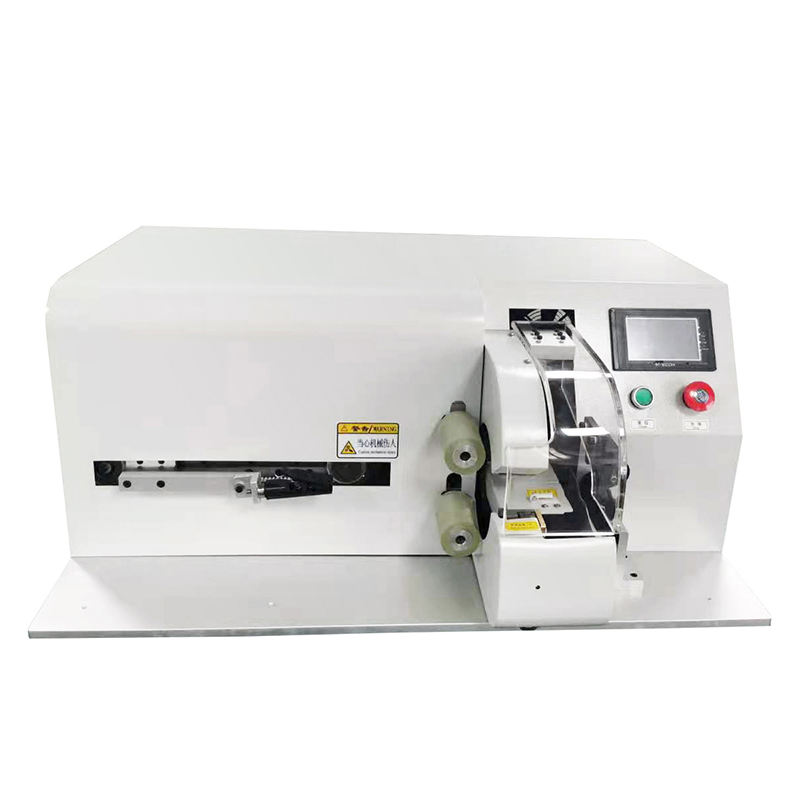

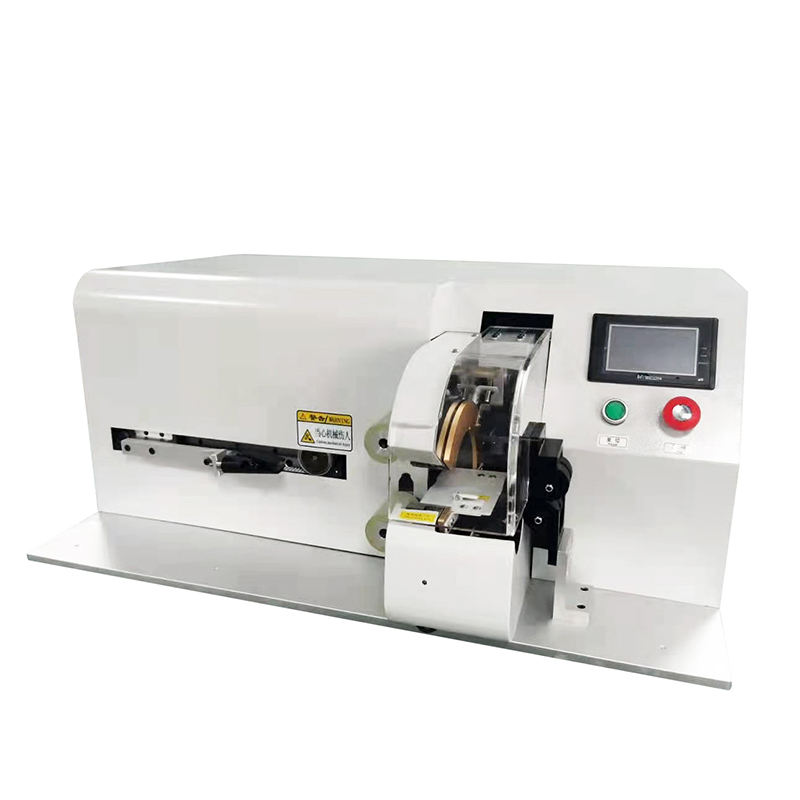

MN-G915XL The semi automatic tape winding machine is Suitable for different types of tape materials without release paper, such as Burkina Faso Tape, PVC tape, etc. It can switch between different winding modes: point winding at the same position, and spiral winding at different positions. also have fixced length wrapping function . For example 1M , 2M 3m .....
* Mode of operation: Touch English PLC screen
* Continuous winding, point winding, fixed length winding
* Compatible with different types of tape materials without release paper, such as Burkina Faso Tape, PVC tape, etc.

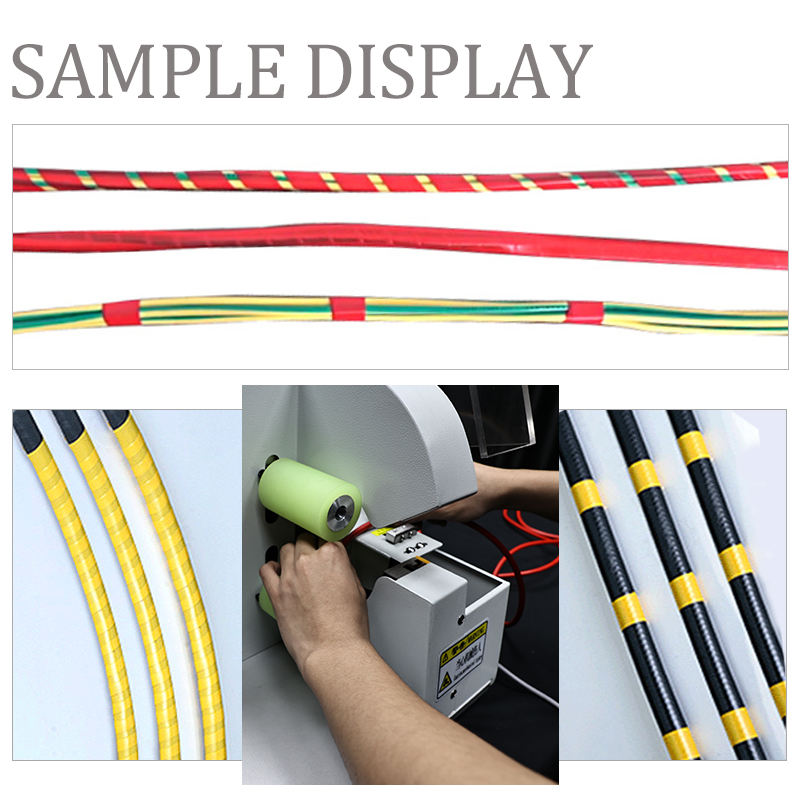

* Switch between different winding modles: point winding at the same position, and spiral winding at different positions
* Available speed settings ,length wrapping settting and output display * Blades can be quickly replaced
