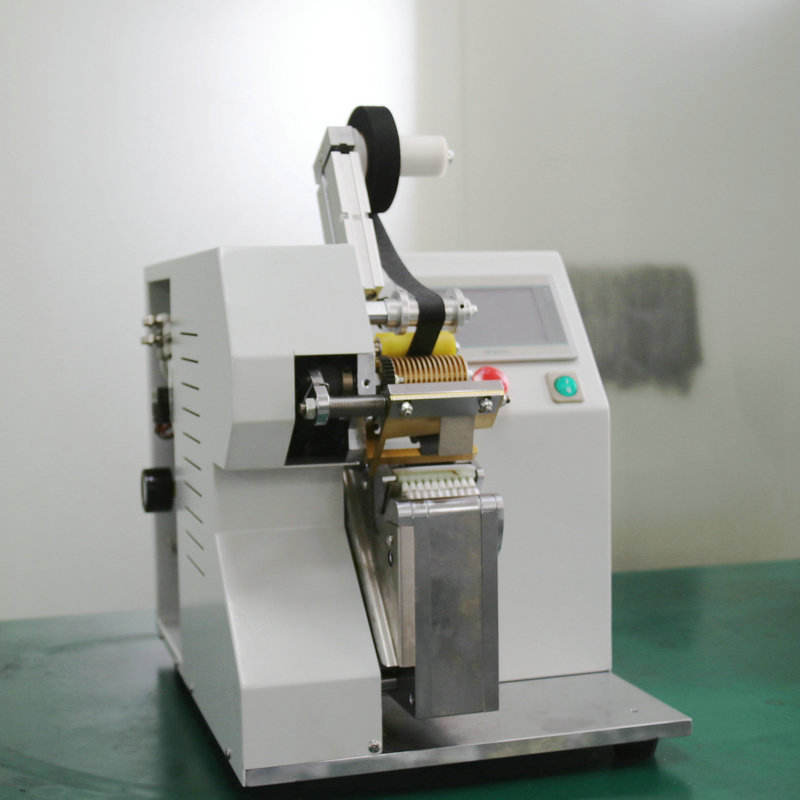

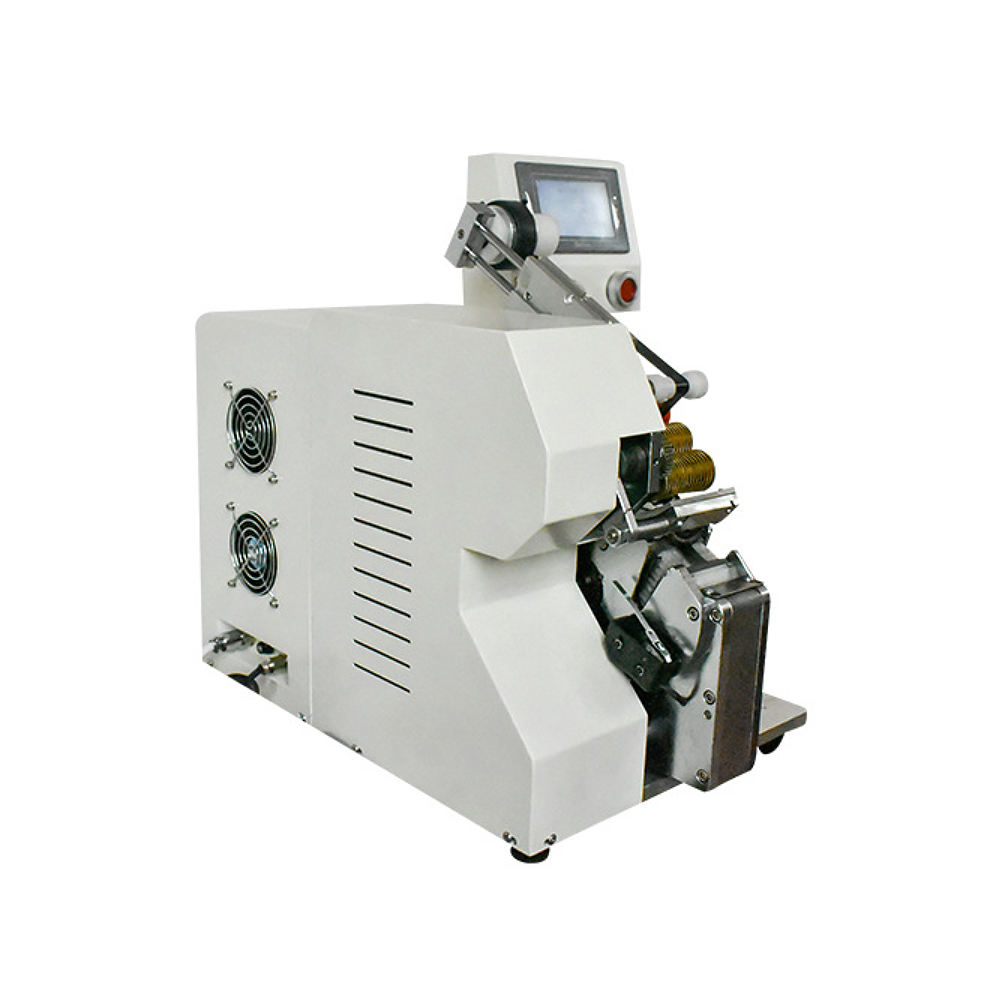

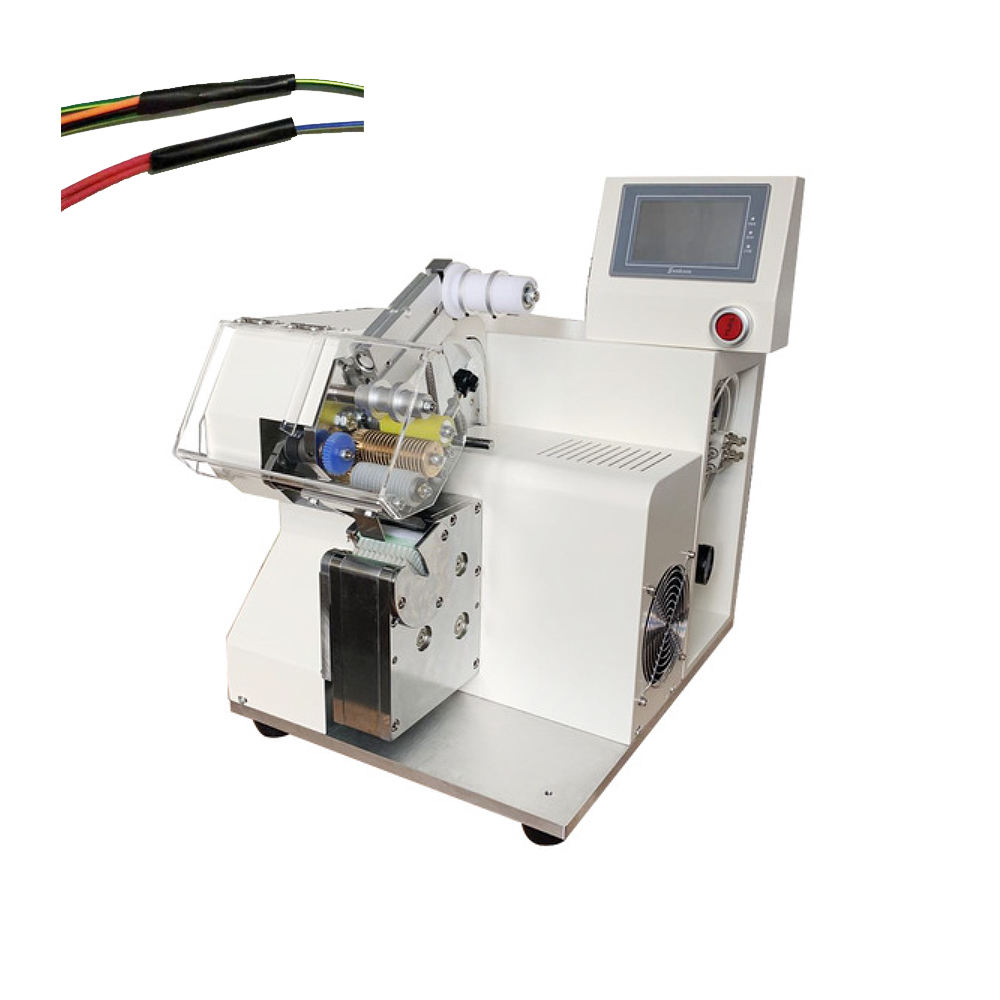

MN-G925A
Model:MN-G925A

ENQUIRE NOW!

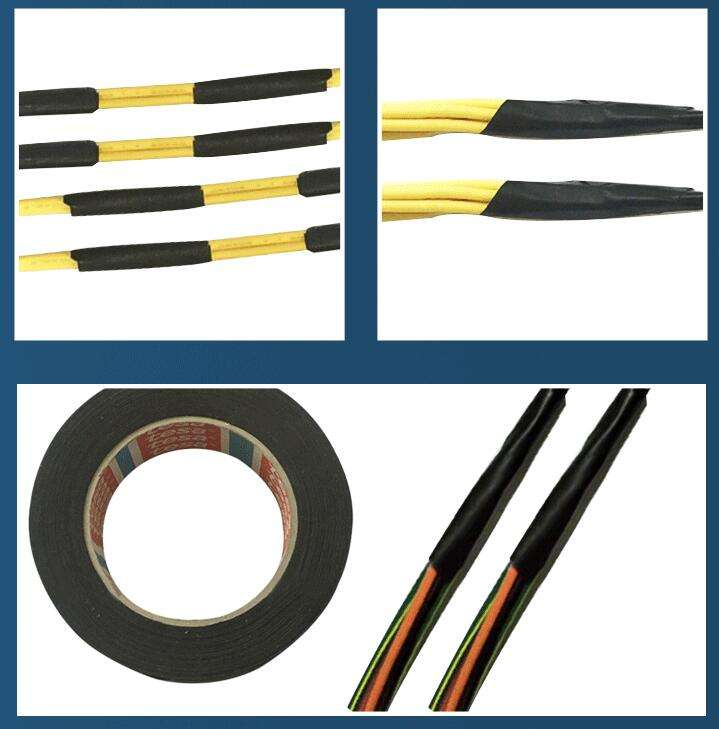

This equipment is suitable for wire harness winding after intermediate point crimping and general bundling of wires.

Specifications

Feature

Download

Model	MN-G925A
Air pressure	0.4Mpa-0.6Mpa
Voltage	AC220V 50HZ
Tape type	PVC / velvet / acetic acid tape
Cable type	Single wire or multiple wire bundles after intermediate point crimping
Work efficiency	24/min
Winding position accuracy	±3mm
Winding overlap accuracy	±2mm, depends on product
Weight	48kg
Size	450350550mm
Cable length required	≥100mm
Cable diameter	3-6mm / 6-14mm
Tape width	10mm-45mm
Tape length	30-35mm/50-55mm

1. This equipment is suitable for wire harness winding after intermediate point crimping and general bundling of wires.

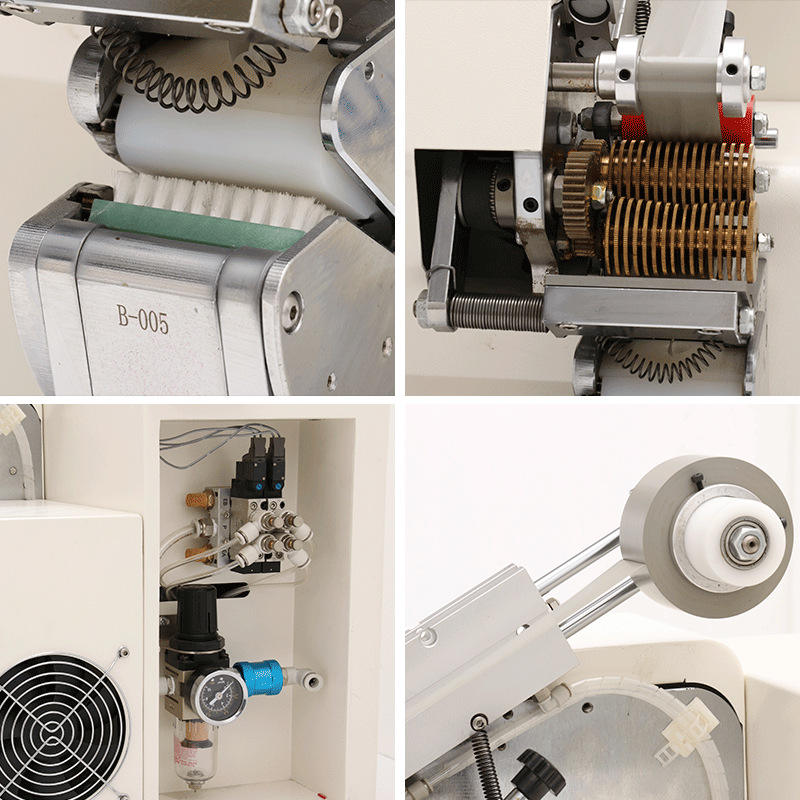

2. Adopting the winding structure with a drum and a brush, it can correspond to a wide range of tape widths and wire harness diameters.

3. Using the copper wheel feeding principle, the structure is stable and reliable, the operation is simple and convenient, and the labor intensity of workers can be significantly reduced.
