Desktop tape winding machine

Tape Wrapping

Tape wrapping machine is an automated device primarily used to wrap tape (such as protective film, insulating tape, packaging tape, etc.) around the surface of an object in a specific manner to achieve functions such as protection, fixation, or sealing.

Products

Our products have passed 3C certification, with reliable quality and durability.

Products Category

Products Category

< >

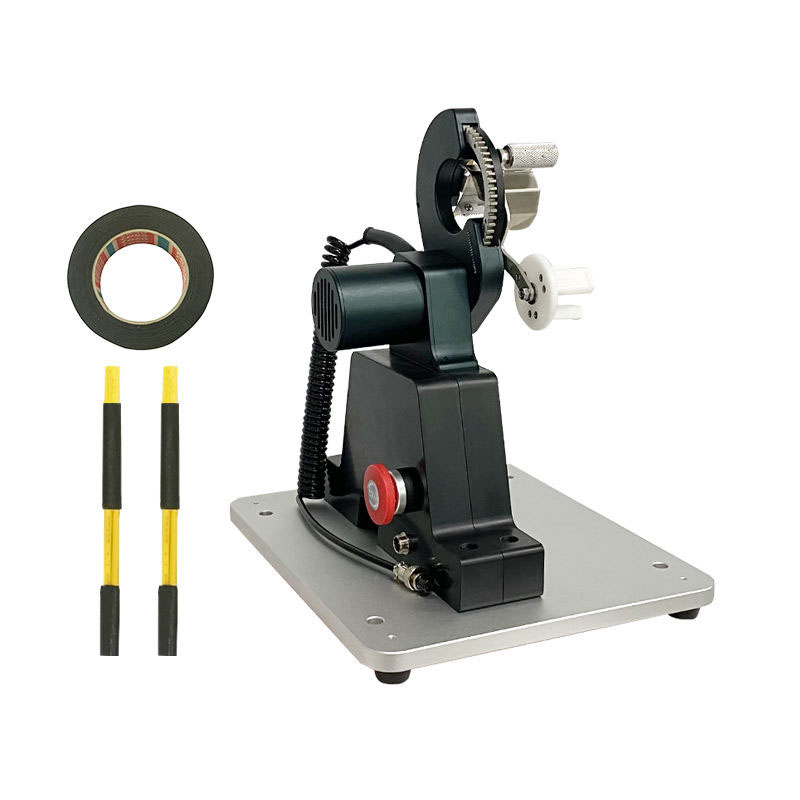

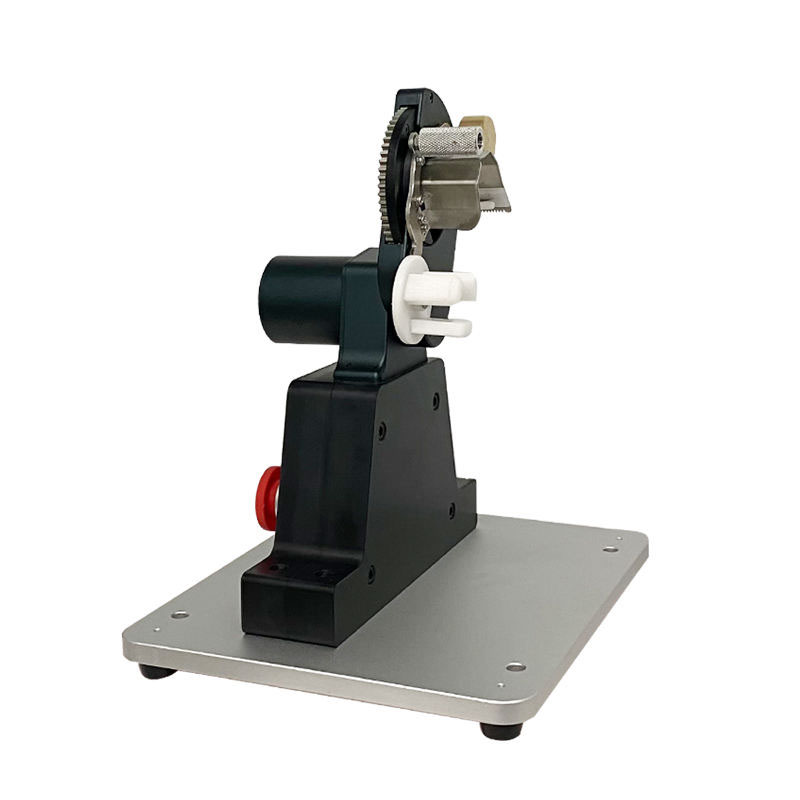

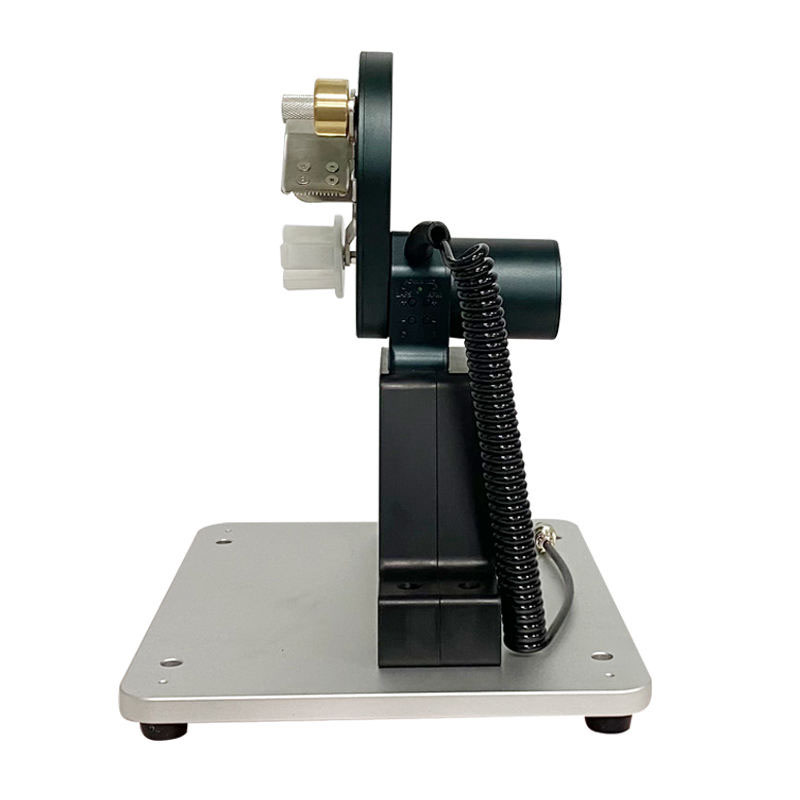

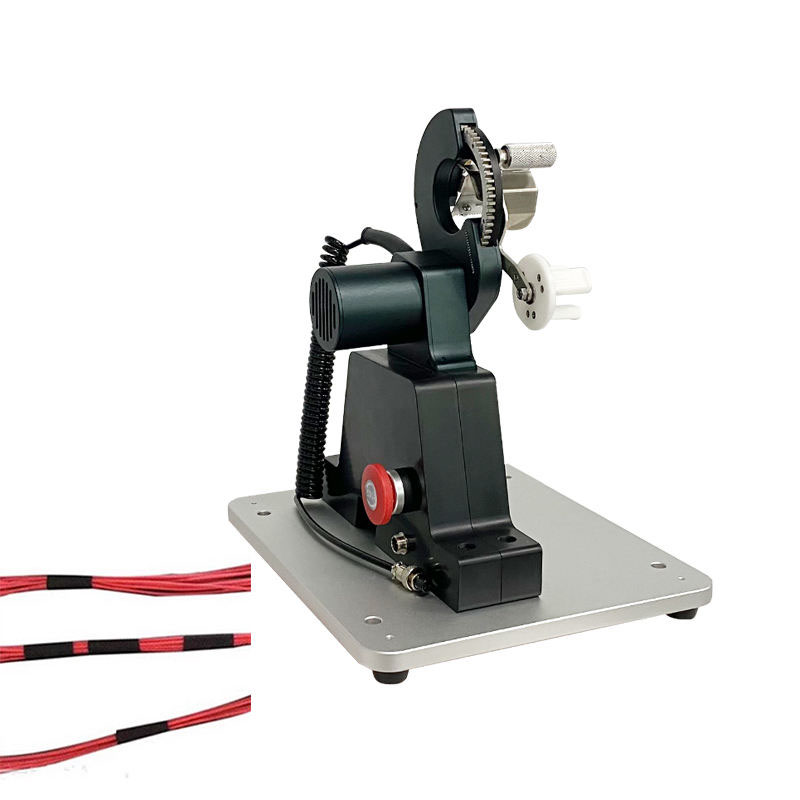

Desktop tape winding machine
Model:MN-G925

ENQUIRE NOW!

The weight of the machine is only nearly 8KG, it is very convenient to change the position and move the machine.

Specifications

Feature

Download

Name	Desktop tape winding machine
Model number	MN-G925
Power supply	100-240V 50-60HZ
Tape specification	width 10-25MM; Outer diameter less than 110MM; Inner diameter 32/38 Special customizable
Harness diameter	35(8-35MM); 55(20-55MM)
Winding speed	150-400 RPM
Machine size	L440W380H320mm
Gross Weight	about 8KG

Functional character
1.The weight of the machine is only nearly 8KG, it is very convenient to change the position and move the machine.
2. Can complete a variety of tape to wire harness for high quality winding. It#39;s sturdy, light, easy to operate and doesn#39;t get tired easily.
3. Integrated toothed incision and hidden protection cutter, can cut any material of tape. Easy to operate.
4. Simple and ergonomic.
5. After cutting the tape, the tape automatically jumps to the next position to prepare for the next step, no additional procedures are required.
6. Turntable open design, branches can be skipped.
7. Adjustable speed, with point winding number setting function.
